Reel Diameter Sheeter Machine Paper Roll Cutting Machine
Product Details
Roll Paper Sheeter
,Paper Sheeting Machine
,Paper Cutting Machine
High Precision Synchronize-fly Sheeter features fiber-less clean cuts with high dimensional precision. Ideal for board paper, art paper, kraft paper, packing paper, and various board materials.

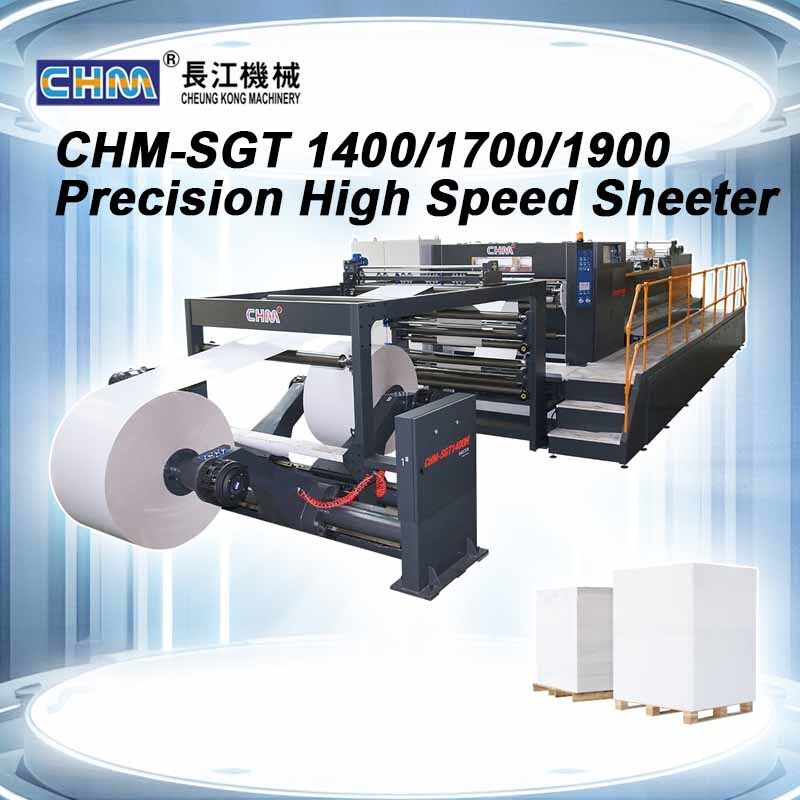

High Precision Synchronize-fly Sheeter
CHM-SGT1400H/1700H Double rotray sheeter machine , Refence weight of cutting paper :150-1000gsm.
CHM-SGT1400H -Max. cutting width: 1500mm (59")
CHM-SGT1700H -Max. cutting width: 1700mm (66.9")
Options Automatic paper splicing system& pallet change system,Cut down on labor input and minimize wastage—maximize your savings! Reach out to us ! Share your requirements—gsm, size, reel width, and paper type—and we'll craft a tailor-made optimal solution just for you!
CHM-Machinery Ms.Ada Mob Whatsapp/Wechat :86-132 1524 2947
Email:chm017@szchm.com
Main Technology
- Heavy-weight paper compatibility – Handles cardstock, coated paper, kraft paper, cultural paper, offset paper, glossy photo paper, metallic cardstock, aluminum foil, laser holographic paper, and tobacco/liquor packaging materials.
- Precision cutting – Equipped with high-precision dual-rotary blade technology, achieving a cutting accuracy of ±0.3mm, leading the industry in slitting performance.
- Flawless finish – No lint,, no glare spots, no pressure marks.
| Type of cutting | Top blade and bottom blade rotary |
| Weight of paper | 150-1000 GSM |
| Number of rolls cutting | 4 rolls |
| Reel diameter | Max 1800mm (71") |
| Finished width | Max 1500mm (59") |
| Finished sheet length | Min 400 - Max 1700 mm |
| Total power | 98KW |
| Voltage | AC380V/220V x 50Hz |
- Heavy-weight paper compatibility - Handles cardstock, coated paper, kraft paper, cultural paper, offset paper, and specialty materials including aluminum foil and holographic paper
- Precision cutting - High-precision dual-rotary blade technology with ±0.3mm cutting accuracy
- Flawless finish - No lint, no glare spots, no pressure marks
- Automated operation - Includes auto web guide system, electric de-curl unit, and auto jogger system
- Efficient waste management - Middle slitting and waste edge collecting system
| Parameter | Details |
|---|---|
| Model | CHM-SGT1500H II |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 400 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Output | Depends on material, weight of paper, and operating process |
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top slitter adjustable up or down with manual width adjustment
- Bottom slitter fixed with manual width adjustment
- Windmill driven by 5.5kw motor
- Type-Y collecting pipe for waste edge
- Advanced high-power CT servo motor controls double screw cutter to eliminate paper burr
- Main driving roller with grainy surface controlled by air pressure for optimal paper grip
- Horizontal conveying with multi-stage design for counting and piling
- First stage quickly separates cut paper
- Second stage conveys paper at slower speed with single or linkage acting control
- Power deceleration belt prevents impact during stacking
- Precise counting and label insertion
- Programmable through HMI interface
- Includes defective product refill function
Established in 2004, CHM Machinery specializes in paper sheeter machines and A4 production lines. With three factories in Guangdong, Shandong, and Jiangsu covering 140,000 square meters, we've grown to become the world's second largest sheeting machine manufacturer with independent production capacity.
Our annual production exceeds 200 units, exported to over 100 countries worldwide. We offer customized solutions based on your specific paper type, gram weight, width, and capacity requirements.
Our machines offer exceptional stability with ±0.3mm cutting accuracy. They handle a wide range of paper weights from 65g to 800g. The fully automatic configuration reduces labor while increasing production capacity.
Yes, we have numerous successful installations demonstrating our ±0.3mm accuracy, including major paper mills like ND Paper and Zhonghua Commerce.
As pioneers in China's paper sheeter machine industry with over 21 years of experience, we offer unmatched expertise. Our engineers average 15+ years of experience, and many customers have used our equipment for over a decade.
We conduct pre-production samples before mass production and final inspections before shipment. All parts are guaranteed for one year, with lifetime maintenance support.
