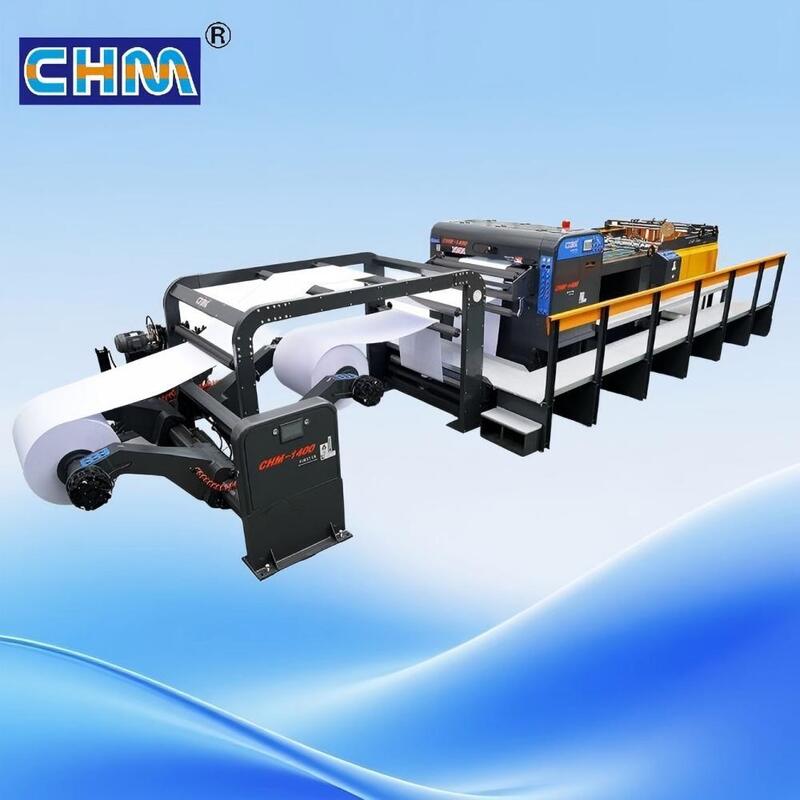

AC Series Paper Sheeter Machine CHM1400- 1900mm
Product Details
Paper Sheet Cutter Machine
,Twin Knife Paper Sheeting Machine
,Roll Paper Sheeter
CHM-1400/1700/1900mm
| Cutting Way | Top blade rotary, bottom blade fixed |
| Reference weight of cutting paper | 60-550GSM |
| Cutting accuracy | ±0.5mm |
| Max cutting speed | 300sheets/min |
| Max.cutting meter speed | 300m/min |
| Cutting length range | 450-1650mm |
| Max scroll diameter | 1800mm |
| Stacking height Of paperboard | 1500mm(59") |
The CHM Series High Speed Precision Paper Sheeter features a servo-driven cutting system with "fixed bottom knife and rotating upper knife" design, delivering exceptional speed, precision, and efficiency for paper converting operations.
This industrial-grade sheeter handles a wide range of materials including board paper, art paper, kraft paper, and more, making it ideal for printing, packaging, and paper supply applications.
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Reference weight of cutting paper | 60-550GSM | 60-550GSM | 60-550GSM |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max cutting speed | 300sheets/min | 300sheets/min | 300sheets/min |
| Max.cutting meter speed | 300m/min | 300m/min | 300m/min |
| Cutting length range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm | 1800mm |
| Stacking height Of paperboard | 1500mm(59") | 1500mm(59") | 1500mm(59") |
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension(LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top slitter: Adjustable up or down, slitting width can be adjusted manually
- Bottom slitter: Fixed position with manual width adjustment
- Windmill: Driven motor system
- Type-Y collecting pipe for waste edge
- Tool Apron fixed in British style for maximum efficiency
- Automatically adjusts paper squareness based on touch screen calibration
- Anti-static bar effectively eliminates static in sheets
- Horizontal conveying with multi-stage design for efficient counting and piling
- First stage: Quickly separates cut paper
- Second stage: Tile-shaped conveyance with adjustable speed control
- Precise counting and label insertion
- Programmable via HMI interface
- Automatic refill of defective products
- AC servo motor for reclaiming blade
- AC motor for paper conveyor
- Inverter motor for secondary conveyor strap
- AC motor for stacker elevation
- AC motor for front jogger
- AC motor for waste edge collection windmill
- AC motor for unwind stand
- Computer-controlled tension based on paper roll diameter and weight input
- Precision sensing nozzle for accurate web line detection
- Fast response EPC system for various materials
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing facilities established in 2004. After 21 years of development, we have grown into a professional paper sheeter machine manufacturer with three factories across Guangdong, Shandong, and Jiangsu provinces.
Our 140,000 square meter production facilities make us the world's second largest sheeting machine manufacturer with independent production capacity. We maintain a professional R&D team and after-sales service network, with annual sales exceeding 200 units distributed to over 100 countries worldwide.
We have successfully installed equipment for major paper mills including Sun Paper, ND Paper, Double A, APP, Onhing Paper, and Chenming Paper among others.
- All parts guaranteed for one year with lifetime maintenance support
- Pre-production samples and final inspection before shipment
- Preferential pricing for spare parts and services after warranty period
- 110+ patents demonstrating our innovation capabilities
- Global distribution network serving all major markets
