Compact A4 Paper Manufacturing Machine with 10 Reams/Min Output and 60-100g/m² High-Grade Copy Paper Production Line
Product Details
1.4m a4 paper manufacturing machine
,a4 paper manufacturing machine 8 reams
,10 reams paper copy making machine
A4 Copy Paper Small Fully Automatic 8-10 Reams Per Minute a4 Paper Cutting And Packing Machine
| Attribute | Value |
|---|---|
| Paper Width | Gross width 850 mm, net width 840mm |
| Cutting numbers | 2 cutting-A4 210mm (width) |
| Paper roll's diameter | Max.Ф1400mm. Min.Ф600mm |
| Paper core's diameter | 3"(76.2mm) or according to client demand |
| Packing Paper grade | High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
| Paper weight | 60-100g/m² |
| Sheet length | 297mm (specially designed for A4 paper) |
| Ream amount | 500 sheets Max. Height: 45-55mm |

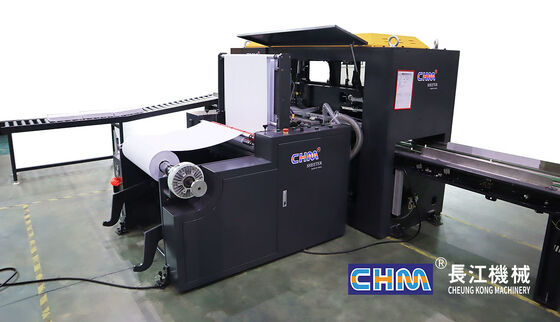

The CHM-A4-2 is a compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line that utilizes advanced Twin Rotary Knife Synchronize Sheeting technologies. This system features fully automatic ream and box wrapping capabilities.

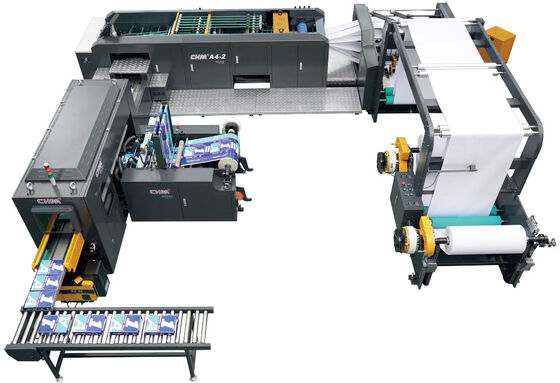

This small-footprint A4 copy paper cutting and packaging machine production line (2 rolls and 4 pockets) delivers an output of 10 reams/min while occupying only 8×9 meters of floor space. Ideal for users with a monthly production capacity of 200-300 tons.
| Parameter | Details |
|---|---|
| Model | CHM-A4-2 |
| Paper Width | Gross width 850 mm, net width 840 mm |
| Cutting Numbers | 2 cutting-A4 (210 mm width) |
| Paper Roll's Diameter | Max Ф1400 mm, Min Ф600 mm |
| Paper Core's Diameter | 3" (76.2 mm) or according to client demand |
| Packing Paper Grade | High-grade copy paper, high-grade office paper, high-grade free wood paper, etc. |
| Paper Weight | 60-100 g/m² |
| Sheet Length | 297 mm (specially designed for A4 paper) |
| Ream Amount | 500 sheets Max, Height: 45-55 mm |
| Production Speed | Max 0-250 m/min (depends on paper quality) |
| Max Numbers of Cutting | Max 841 cuts/min |
| Output of the Ream | Max 13 reams/min |
| Load of Cutting | 100 g/m² (1×100 g/m²) |
| Cutting Accuracy | ±0.2 mm |
| Cutting Condition | No speed variation, no breaks, cut all paper at once with eligible paper |
| Main Power Supply | 3*380 V / 50 Hz |
| Voltage | 220 V AC / 24 V DC |
| Power | 23 KW |
| Air Consumption | 200 NL/min |
| Air Pressure | 6 bar |
| Edge Cutting | 5~15 mm * 2 |
| Safety Standard | Designed according to China's safety standards |
Transporting SystemPaper Collecting System| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max 55 mm; Min 45 mm |
| Packing Roll Diameter | Max 1000 mm; Min 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Packing Sheets Grade | High-grade copy paper, high-grade office paper, high-grade offset paper, etc. |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Packing Condition | No speed variations, no breaks, cut all paper at once with qualified packing paper |
| Driving | AC Servo Precision Control |
| Main Power Supply | 3*380 V / 50 Hz (or as required) |
| Voltage | 220 V AC / 24 V DC (or as required) |
| Power | 18 KW |
| Compressing Air Consumption | 300 NL/min |
| Air Compressor | 6 bar |
Control System: All machines are controlled by PLC, including speed control, paper count, paper ream output, fault alarm and automatic stop (Indicate fault code shown on the panel screen).
CHM Machinery specializes in manufacturing paper sheeter machines and A4 production lines with two series designs. As the original developer of China's first paper sheeter machine and A4 copy paper production line, CHM Machinery has been a leader in the industry since 2004.
With three factories in Guangdong, Shandong and Jiangsu covering nearly 140,000 square meters, we've grown to become the world's second largest sheeting machine manufacturer with independent production capacity. Our professional after-sales team and R&D department support our global customer base across more than 100 countries.
Our 2006 single knife sheeter model continues to serve customers worldwide, with annual sales exceeding 200 units. We have numerous successful installation cases and can verify if your country already has our equipment in operation.
Please share your detailed requirements regarding paper type, gram weight, width, and capacity, and we'll recommend the most suitable paper roll sheet cutting model for your needs.
Please feel free to ask any questions about our products or tell us your sourcing needs.
https://www.chmmachinery.com
Email:chm017@szchm.com
Whatsapp/Wechat Us On These Nos. No: 86-13215242947 ( Ms. Ada)
We have the R&D capabilities and high-speed cutting technology. Our machines operate 24 hours per day with a maximum production capacity of 1600 tons, holding 70% of the market share.
Many paper mills use our equipment, including ND Paper (Pakistan), Double A, Sun Paper, and Industry. We can provide videos of machines operating in your country.
CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have customers who have used our equipment for more than a decade, supported by engineers with 15+ years of experience.
We always provide pre-production samples before mass production and conduct final inspections before shipment.
All parts are guaranteed for one year, with CHM Machinery providing lifetime maintenance. Outside the warranty period, we offer spare parts and services at preferential prices with prompt response times.
