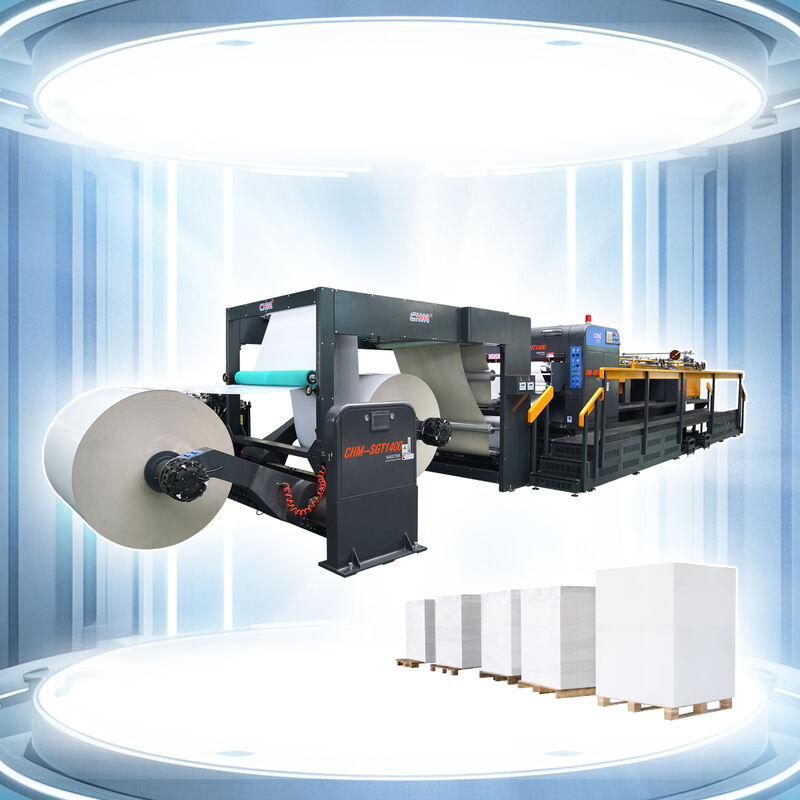

Sheet Reel To Sheet Cutter Machine Automatic Roll Paper Cutting Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-SGT1400E/1700E/1900E
Trading Properties
Minimum Order Quantity:
1 set
Price:
120000-180000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
New Double Rotary Knife Paper Sheeter Machines Paper Sheeter Machine Double Rotary Knife Paper Sheeter Machine 200-1000 GSM Key Specifications Attribute Value Type of cutting Top blade and bottom blade rotary Weight of paper 200-1000 GSM Reel diameter Max 1800mm (71") Finished width Max 1400mm (55") ...
Product Details
Highlight:
1.65m sheet reel to sheet cutter machine
,reel to sheet cutter machine 2 rolls
,2 rolls automatic roll paper cutting machine
Type Of Cutting:
Top Blade And Bottom Blade Rotary
Weight Of Paper:
200-1000 GSM
Reel Diameter:
Max 1800mm(71")
Finished Width:
Max 1400mm(55")
Finished Sheet-Length:
Min.450-Max.1650 Mm
Num.Of Rolls Cutting:
2 Rolls
Cutting Accuracy:
±0.5mm(L<1000mm) ±0.1% (L≥1000mm)
Voltage:
AC380V/220Vx50Hz
Product Description
New Double Rotary Knife Paper Sheeter Machines Paper Sheeter Machine
Double Rotary Knife Paper Sheeter Machine 200-1000 GSM
Key Specifications
| Attribute | Value |
|---|---|
| Type of cutting | Top blade and bottom blade rotary |
| Weight of paper | 200-1000 GSM |
| Reel diameter | Max 1800mm (71") |
| Finished width | Max 1400mm (55") |
| Finished sheet-Length | Min.450-Max.1650 mm |
| Num.of rolls cutting | 2 rolls |
| Cutting accuracy | ±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
| Voltage | AC380V/220Vx50Hz |
Product Description
This high-performance paper sheeter features top and bottom tool aprons for precise cutting of thick paper. With a cutting speed of 300m/min and gram range of 40-1000g, it can simultaneously cut up to 4 rolls of heavy paper (200g+), significantly improving work efficiency and production capacity.
The double rotary knife system utilizes flying shear cutting (synchronous/variable speed cutting) that adjusts knife speed during paper conveyance to ensure perfect synchronization. This advanced technology delivers fiber-less, clean cuts with high dimensional precision, eliminating paper hair and allowing direct printing without secondary processing.
High Precision Synchronize fly Sheeter
Ideal for board paper, art paper, kraft paper, and packing paper/board applications.
Technical Parameters
| Parameter | Specification |
|---|---|

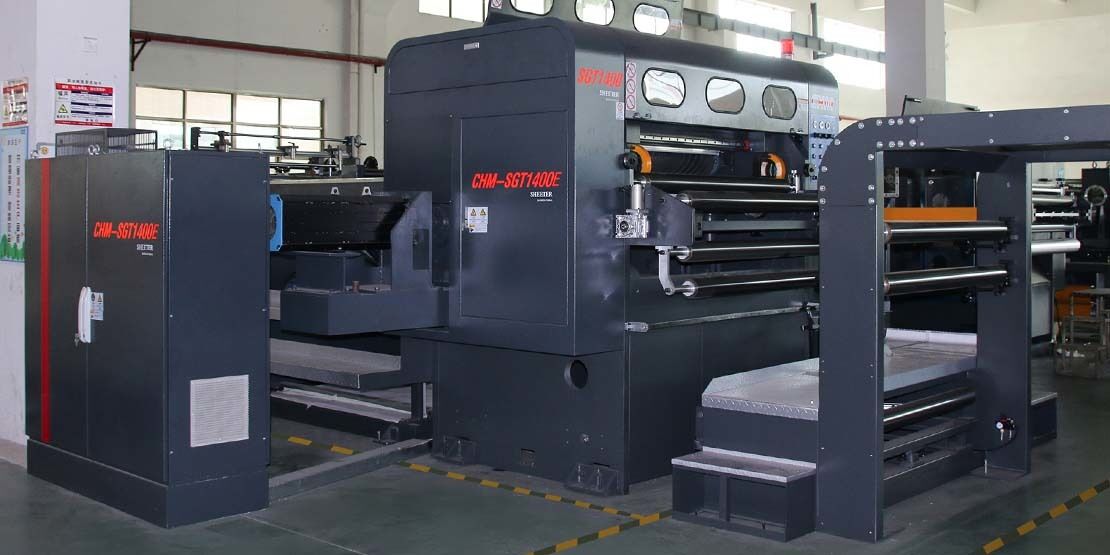

| Model | CHM-SGT1400E |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Total Power | 84 KW |
| Output | Dependent on material, paper weight, and operating process |
Key Components

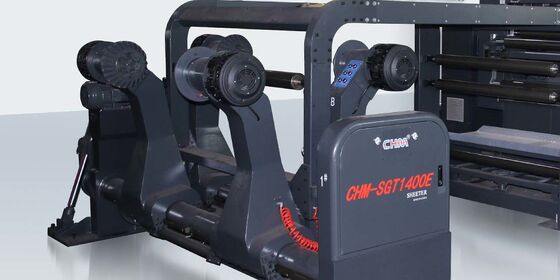

Hydraulic shaft-less unwind station
Multi-disc brake
High precision synchronic-fly cutting unit

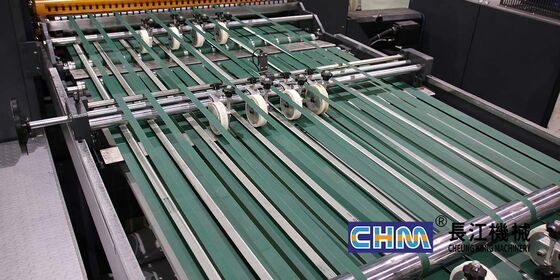

Middle Slitting and Waste Edge Collecting System
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top slitter: Adjustable up/down with manual width adjustment
- Bottom slitter: Fixed position with manual width adjustment
- Windmill: Driven motor
- Type-Y collecting pipe for waste edge
Advanced Features

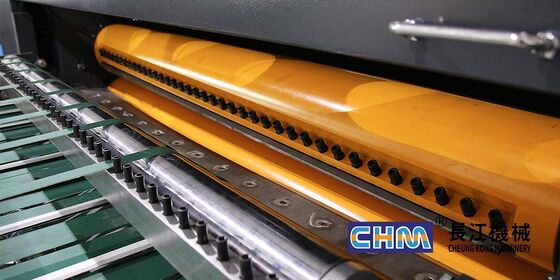

High Precision Single Rotary Sheet Cutter
- Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
- Bottom Tool Apron: Time-cast apron processed for maximum stability
- Main driving roller: Grainy surface with air pressure control for optimal paper grip
Auto-Squareness Adjustment System
- British-style fixed Tool Apron for maximum efficiency
- Automatically adjusts paper squareness based on touchscreen calibration
Static Eliminator System
- Anti-static bar effectively eliminates static in sheets
Frequently Asked Questions
What kind of quality service do you offer?
All parts are guaranteed for one year with lifetime maintenance from CHM Machinery. Outside warranty, we provide spare parts and services at preferential prices.
How do you guarantee quality?
We always provide pre-production samples before mass production and conduct final inspections before shipment.
Why choose CHM Machinery?
We are the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide (140,000 sqm). Our R&D team holds over 110 patents, making us sheet solution experts.
