CHM 1400 Sheeter Single Rotary Paper Sheeting Machine Paper Cutting
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
CHM 1400 Sheeter Single Rotary Paper Sheeting Machine CHM Machinery Single Rotary Paper Sheeting Machine offers precision paper cutting solutions for various applications in printing, packaging, and paper supply industries. Product Overview CHM-1100/1400/1700/1900 Precision High Speed Single Rotary ...
Product Details
Highlight:
CHM 1400 paper sheeting machine
,single rotary paper cutter
,paper cutting machine with warranty
Total Power:
22kW
Power Supply:
AC380V 50Hz
Dimensions:
6000mm X 2500mm X 1800mm
Maximum Cutting Width:
1100mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description
CHM 1400 Sheeter Single Rotary Paper Sheeting Machine
CHM Machinery Single Rotary Paper Sheeting Machine offers precision paper cutting solutions for various applications in printing, packaging, and paper supply industries.
Product Overview
CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife Paper Sheeter Machine is a servo-driven system delivering high speed, precision, and efficiency. Capable of processing wide range of materials including paper, board paper, art paper, and kraft paper.
Machine Configuration
- Unwind Stand: Automatic tension system with multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyer System
- Electrostatic eliminator System
- Auto-Squareness Adjustment System
- Auto counting and Label inserting device
- Auto Jogger System
Technical Description
CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior quality output.
The single-drum sheeter employs a "Top blade rotary, bottom blade fixed" flying shear design, where the lower blade remains stationary during paper transport while the upper blade rotates continuously at high speed. The AC servo-driven control system ensures accurate and stable operation.
This machine handles paper weights from 60 to 550 gsm and can process thin paper as light as 30 grams, with the capability to cut 8-12 rolls simultaneously at speeds up to 100 cuts per minute.
Technical Specifications
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300m/min | 300m/min | 300m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper-Cutting Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension (LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
Machine Components & Operation

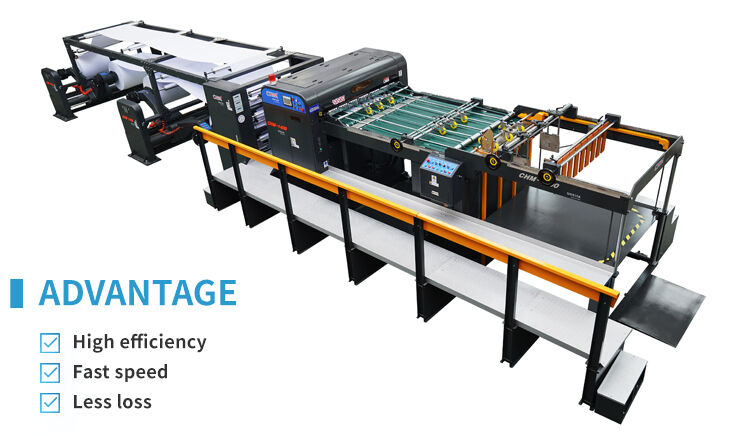

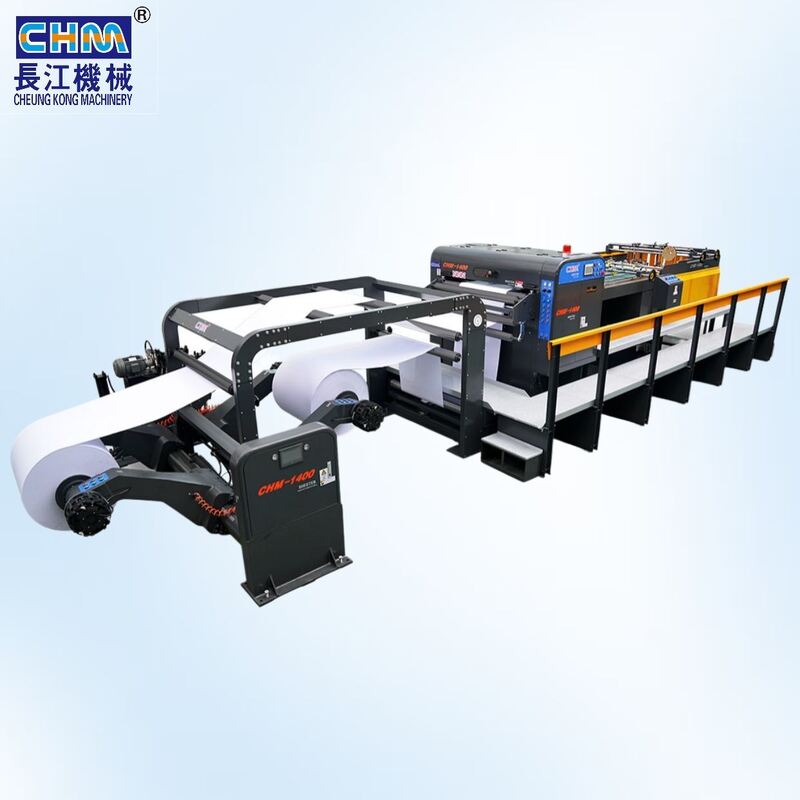

CHM Series Paper Sheeter Overview

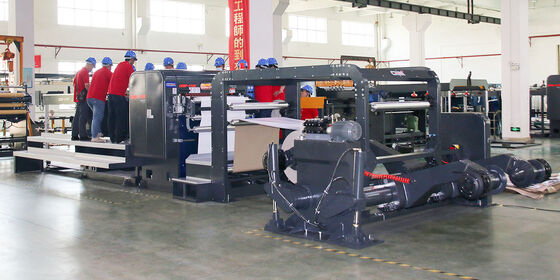

Paper Sheeter in Operation

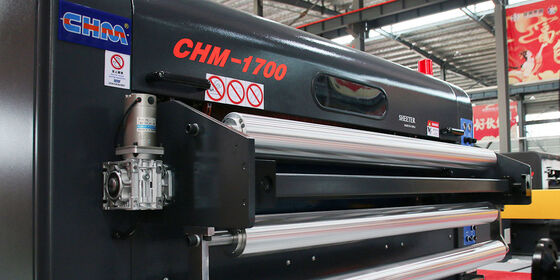

Close-up of Cutting Mechanism
Hydraulic Shaft-less Unwind Station
Multi-disc Brake System
High Precision Single Rotary Sheet Cutter

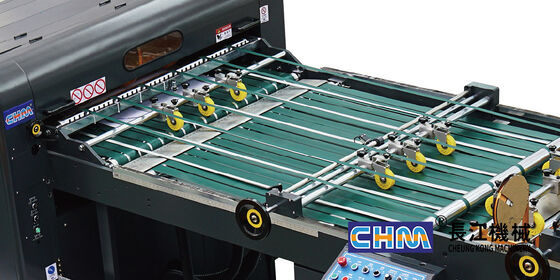

Conveyor Unit
Auto Jogger System

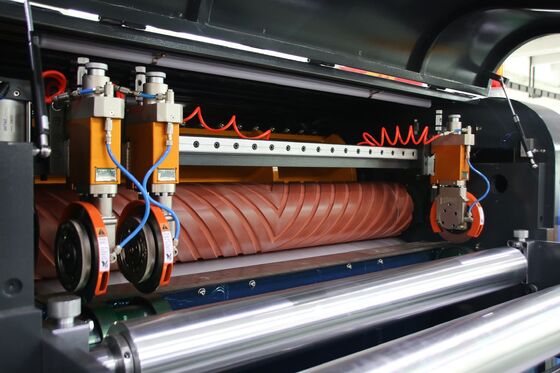

Middle Slitting and Waste Edge Collecting System
Frequently Asked Questions
Our Cooperative Partners
Paper mills: Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C JOINT PRINTING CO. (HK) LTD, etc.
What kind of quality service do you offer?
All parts are guaranteed for one year. CHM Machinery provides lifetime maintenance support. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.
How do we guarantee quality?
We conduct pre-production samples before mass production and perform final inspections before shipment.
What products can you buy from us?
Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, cut-to-size paper and packaging machines.
Why choose CHM Machinery over other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China, operating from the world's second largest facility spanning nearly 140,000 square meters. As sheet solution experts, we maintain the best R&D team and hold over 110 patents.
Who are we?
Our headquarters is located in Guangdong, China, established in 2010. We serve markets worldwide including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), Eastern Europe (2.00%), South Asia (2.00%), Southern Europe (2.00%), Southeast Asia (2.00%), Central America (2.00%), Western Europe (2.00%), North America (2.00%), Middle East (2.00%), and Oceania (2.00%). Our organization employs approximately 101-200 people.
CHM Machinery Operations
Manufacturing Process
Quality Control Standards
