CHM Roll Paper Cutting Machine With 1400mm Maximum Sheeter Width For 60-500gsm Paper Range

Basic Properties
Place of Origin: CHINA
Brand Name: CHM Machinery
Certification: CE
Model Number: CHM-1400III
Trading Properties
Minimum Order Quantity: 1
Price: 60000-120000
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 200
Tags

high speed paper sheeter

roll to sheet cutter

industrial paper sheeting
Product Summary
CHM-1400/1700/1900 Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging CHM Machinery Paper Reel To Sheet Cutting Machine Paper Sheeter Machine Product Overview CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging This servo-driven machine excels in thin ...

Product Details

Highlight:

27kW CHM Machinery

,

300m/min CHM Machinery

,

CE roll paper cutting machine
Power: 22kw 27kw
Maximum Cutting Width: 1400mm
Paper Range: 60-500gsm
Cutting Speed: 300m/min
Maximum Cutting Length: 450-1650mm
Cutting Accuracy: ±0.5mm
Control System: PLC Control With Touch Screen
Product: Paper Roll To Sheet Cutting Machine
Voltage: 380V
Max Speed: 300 Cuts/min
Product Description

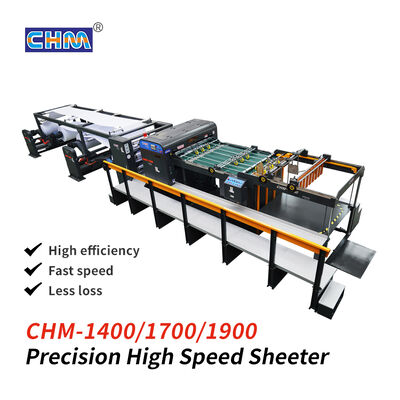

CHM-1400/1700/1900 Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging
CHM Machinery Paper Reel To Sheet Cutting Machine Paper Sheeter Machine
Product Overview
CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging
This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling 60-500 GSM paper, it's ideal for printing, packaging, and paper suppliers. The modular design allows for multiple roll processing simultaneously.

CHM Machinery's main products is a computerized high-precision single rotray sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. This machine handles paper sizes from 60 to 550 gsm.



From single to 12 rolls, it can slit 30g Bible paper, copy paper, 40g silicone paper, and offset paper up to 500gsm thick paper, providing stable and faster speeds.

Key Specifications
Attribute Specification
Machine Weight 2500kg
Type of Cutting Top blade rotary, bottom blade fixed
Weight of Paper 60-500 GSM
Reel Diameter Max 1500mm (59")
Finished Width Max 1100mm (43")
Finished Sheet Length Min. 450 - Max. 1300 mm
Number of Rolls Cutting 2 rolls
Total Power 22 KW

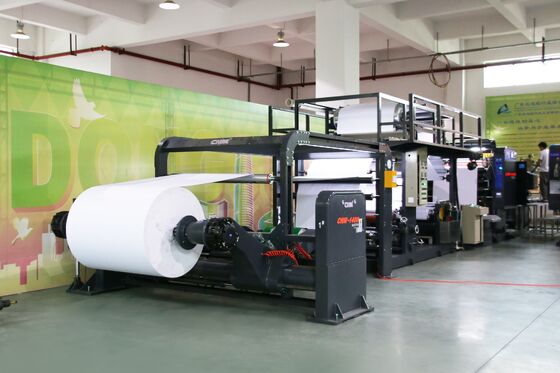

CHM-1100 Paper Sheeting Machine front viewCHM-1100 Paper Sheeting Machine side view

Technical Details
Main Technical Parameters
Parameter Specification
Model CHM-1100/1400/1700/1900
Cutting Accuracy ±0.5mm (L < 1000mm)
±0.1% (L ≥ 1000mm)
Max Speed of Cutting 300 cuts/min
Max Cutting Speed 300 m/min
Requirement of Air Pressure 0.8 MPa
Voltage AC 380V/220V x 50Hz
Standard Configuration
  • Max Reel diameter: 1500mm (59")
  • Max Reel width: 1100mm (43")
  • Min Reel width: 350mm (14")
  • Core size: 3",6",12" (Cone chuck)
  • HYD. Driving: 3.75kw
  • Pneumatic brake system
  • Dancing roll with related bracket

Standard configuration components

Advanced Systems
Middle Slitting and Waste Edge Collecting System
  • Adjustable slitting knife and exhaust tube for waste edge on both sides
  • Top and bottom slitters with manual width adjustment
  • Type-Y collecting pipe for waste edge

Slitting and waste collection system

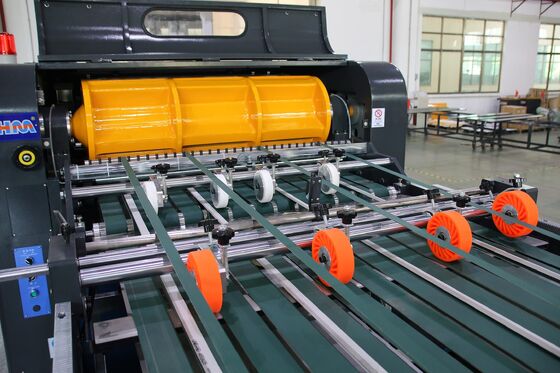

High Precision Single Rotary Sheet Cutter
  • Advanced cutting method reduces noise and extends knife life
  • Stable bottom tool apron with precision casting
  • Grainy surface main driving roller with air pressure control
Static Eliminator System
Anti-static bar effectively eliminates static in sheets.

Static eliminator system components

Company Information
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories totaling 140,000 square meters. As the world's second largest sheeting machine manufacturer, we serve over 100 countries with annual sales exceeding 200 units.
Our facilities in Guangdong, Shandong, and Jiangsu support our position as an industry leader with a dedicated R&D team and comprehensive after-sales service.


We have many successful installation cases, we can checks whether the country has our equipment.

Please tell us your detailed requirements,According to your paper, gram weight, width,capacity , make the most suitable for your paper roll sheet cutting model.Please contact me if you have any inquiries.
Please feel free to ask any questions about our products or tell us your sourcing needs.

https://www.chmmachinery.com
Email:chm017@szchm.com
Whatsapp/Wechat Us On These Nos. No: 86-13215242947 ( Ms. Ada)



CHM Roll Paper Cutting Machine With 1400mm Maximum Sheeter Width For 60-500gsm Paper Range




CHM Machinery factory facilityCHM Machinery production line

Frequently Asked Questions
Quality & Service
  • 1-year warranty on all parts with lifetime maintenance support
  • Pre-production samples and final inspection before shipment
  • Preferential pricing for spare parts after warranty period
Our Capabilities
  • Specialized in paper sheeter machines and A4 production lines
  • Over 110 patents in sheet machinery technology
  • Global distribution network serving 100+ countries

CHM Machinery global operations
