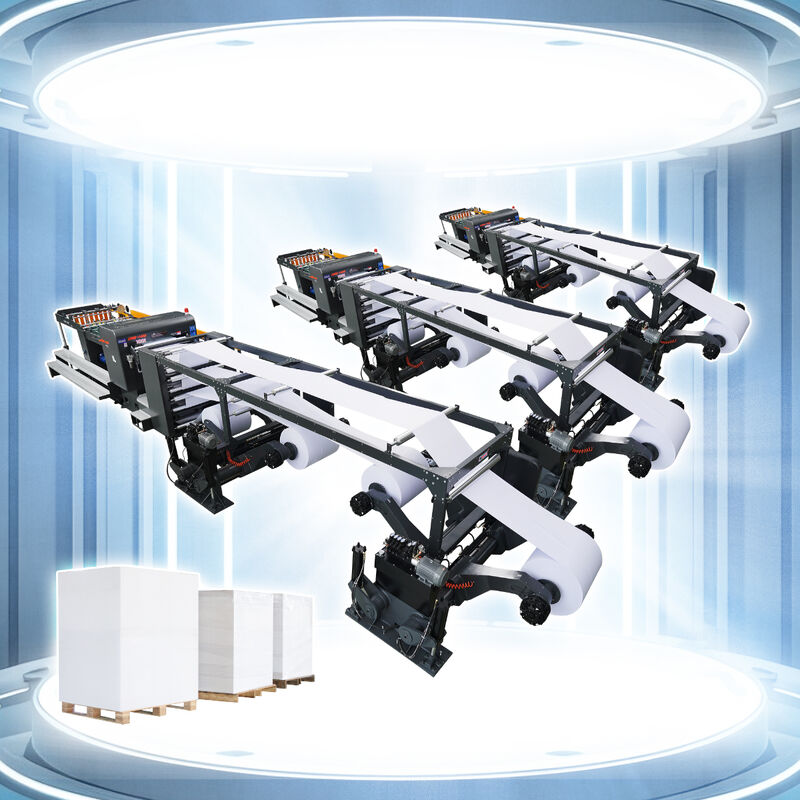

Chm Machinery Paper Sheet Roll To Cutting Machine CHM-1400
Product Details
chm1400 paper plate sheet cutting machine
,14000kg paper die cut machine
,paper plate sheet cutting machine 14000kg
- Unwind Stand :automatic tension system and features multi-point automatic braking.
- Auto-EPC(Edge Paper Control)
- Deculler System( Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyer System
- Electrostatic eliminator System
- Auto-Squareness Adjustment System
- Auto counting and Label inserting devicee
- Auto Jogger System
CHM Machinery's main products is a computerized high-precision single rotray sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. The single sheeter machine AC servo-driven control single rotary sheet cutter with accurate and stability.This machine handles paper sizes from 60 to 550 gsm.
This machine cutting thin paper of 30 grams, it is also common to cut 8-12 rolls at the same time. The speed cut be 100 cutting/min.Thin paper sheeter is not easy for many sheeter machines, CHM Machinery has been committed to making sheeter machines, so thick and thin paper can be easily controlled.
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Refence weight of cutting paper | 60-550GSM | 60-550GSM | 60-550GSM |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max cutting speed | 300sheets/min | 300sheets/min | 300sheets/min |
| Max.cutting meter speed | 300m/min | 300m/min | 300m/min |
| Cutting length range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm | 1800mm |
| Stacking height Of paperboard | 1500mm(59") | 1500mm(59") | 1500mm(59") |
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension(LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
Hydraulic shaft-less unwind station
Middle Slitting and Waste Edge Collecting System1.Our cooperative partner
paper mill:Sun Paper,ND Paper ,Double A,APP, Onhing Paper,MYS,.Chenmingpaper.JHE paper ,C&CJOINTPRINTING CO.(HK)LID etc.
2.What kind of quality service do you offer to me?
All the parts of commodity will be ensured to be used for one year CHM Machinery will maintain them for life.Outside the warranty period, the Seller shall provide spare parts and services at a preferential price as soon as possible.
3. How do we guarantee quality?
Always pre-production samples before mass production;Always final inspection before shipment;
4. What can you buy from us?
Paper sheeter machine, paper cutter, paper sheet machine, copy paper and packaging machine, cut-to-size paper and packaging machine.
5.Why should you buy from us instead of other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China.With the second largest facility in the world, nearly 140.000 square meters.As a sheet solution expert, with the best R&D team and the highest number of patents, more than 110 items.
6.Who are we?
Our headquarter is located in Guangdong, China, started in 2010, selling to East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), Eastern Europe (2.00%), South Asia (2.00%), Southern Europe (2.00%), Southeast Asia (2.00%), Central America (2.00%), Western Europe (2.00%), North America (2.00%), Middle East (2.00%), Oceania (2.00%). Totally there are about 101-200 people in our office.
