Single Rotary High Speed Paper Sheeter 1100mm Paper Sheet Cutting Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1 SHE
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 SETS
Product Summary
CHM Precision Single Rotary Sheeter Cutter Paper Machine High Speed Single Rotary Paper Sheeting Machines This machine excels in processing thin paper. The number of Unwind Stands can be increased to accommodate various paper types. For example, it can simultaneously sheet 4-6 rolls of 70-gram ...
Product Details
Highlight:
Single Rotary High Speed Paper Sheeter
,High Speed Paper Sheeter 1100mm
,Single Rotary paper sheet cutting machine
Product:
Paper Roll To Sheet Cutting Machine
Voltage:
380V
Power:
22kw 27kw
Max Speed:
300 Cuts/min
Product Description

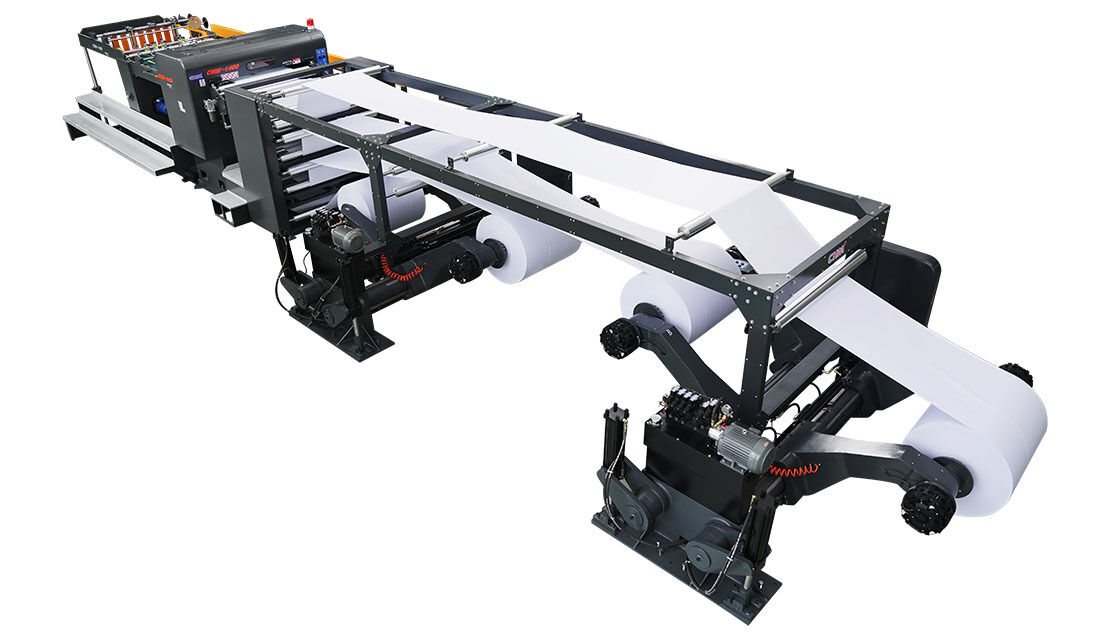

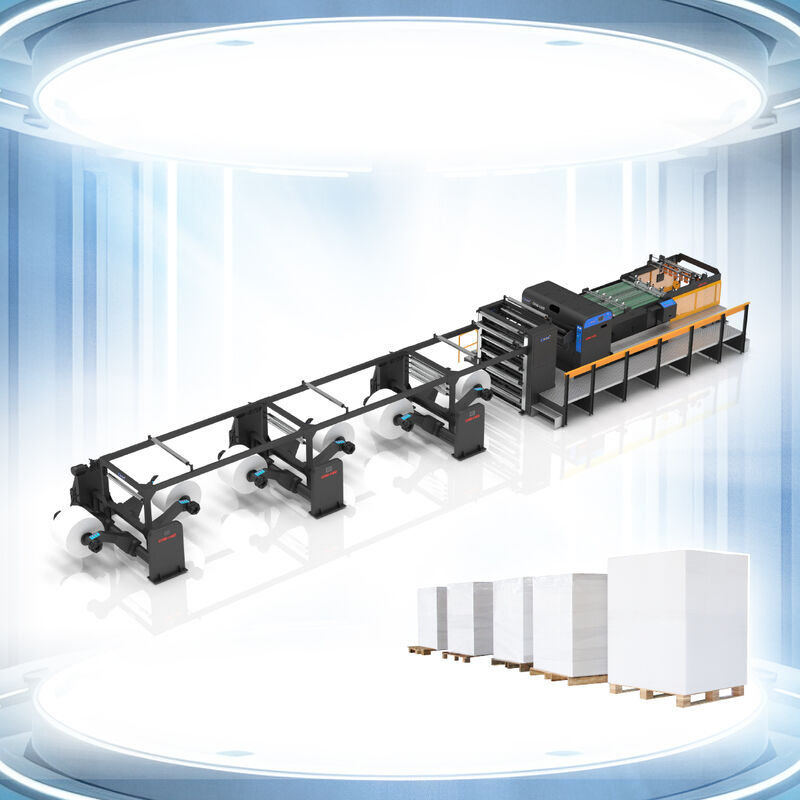

CHM Precision Single Rotary Sheeter Cutter Paper Machine
High Speed Single Rotary Paper Sheeting Machines
This machine excels in processing thin paper. The number of Unwind Stands can be increased to accommodate various paper types. For example, it can simultaneously sheet 4-6 rolls of 70-gram double-sided paper with ease.
Capable of cutting 95% of paper types in the market, this high-speed machine reaches up to 400 cuts per minute. It offers power efficiency, high precision, and can be operated by a single person. Ideal for paper mills, distributors, and printing operations.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
| Total Power | 22 KW |
| Output | Dependent on material, paper weight, and operating process |

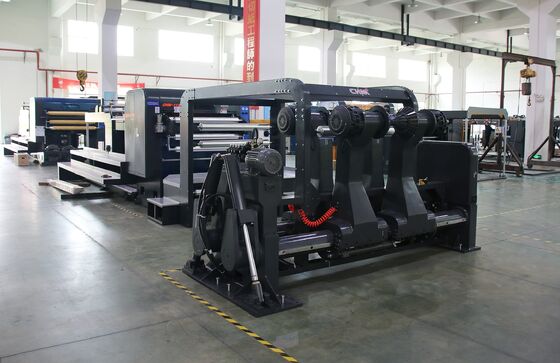

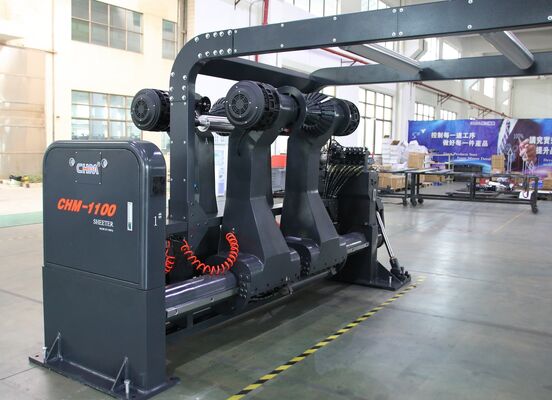

Standard Configuration
- Max Reel diameter: 1500mm (59")
- Max Reel width: 1100mm (43")
- Min Reel width: 350mm (14")
- Core size: 3", 6", 12" (Cone chuck)
- HYD. Driving: 3.75kw
- Clip arm move forward or back driven by HYD
- Clip arm up or down driven by HYD
- Pneumatic brake system
- Dancing roll with related bracket
Middle Slitting and Waste Edge Collecting System
Style
Adjustable slitting knife and exhaust tube for waste edge on both sides.
Top slitter
Adjustable up or down, slitting width can be adjusted manually.
Bottom slitter
Fixed slitters with manually adjustable slitting width.
Windmill
Driven by motor.
Type-Y collecting pipe
For waste edge collection.

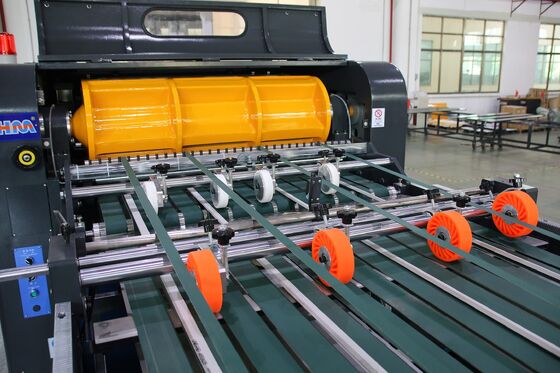

High Precision Single Rotary Sheet Cutter Features
- Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
- Bottom Tool Apron: Cast and processed for maximum stability
- Main driving roller: Grainy surface with air pressure control for optimal paper grip
As manufacturers specializing in paper sheeter machines and A4 production lines since 2004, CHM Machinery has grown into a professional manufacturer with three factories across Guangdong, Shandong, and Jiangsu, covering nearly 140,000 square meters. We are the world's second largest sheeting machine manufacturer with independent production capacity.
Our professional R&D and after-sales teams support our global customer base. Since introducing the single knife sheeter in 2006, we've sold over 200 units annually to more than 100 countries worldwide.
We can verify if your country already has our equipment installed. Please share your detailed requirements including paper type, gram weight, width, and capacity so we can recommend the most suitable model for your needs.
