Single Knife Cut Paper Cutter Paper Roll To Sheet Cutting Machine
Product Details
50hz die cut paper cutter
,1800mm die cut paper cutter
,50hz paper roll to sheet cutting machine
Automatic Single Rotary Knife Sheeter Cutting Paper Roll To Sheets Cutting Machine
CHM Machinery's main products is a computerized high-precision single rotray sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. This machine handles paper sizes from 60 to 550 gsm.
From single to 12 rolls, it can slit 30g Bible paper, copy paper, 40g silicone paper, and offset paper up to 500gsm thick paper, providing stable and faster speeds.
A servo-driven high speed, high precision and high efficiency sheeter. Capable on wide range of paper, board paper, art paper, kraft paper, etc... Widely used by printing, packaging and paper suppliers.
Technical indicators
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Refence weight of cutting paper | 60-550GSM | 60-550GSM | 60-550GSM |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max cutting speed | 300sheets/min | 300sheets/min | 300sheets/min |
| Max.cutting meter speed | 300m/min | 300m/min | 300m/min |
| Cutting length range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm | 1800mm |
| Stacking height Of paperboard | 1500mm(59") | 1500mm(59") | 1500mm(59") |
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension(LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |

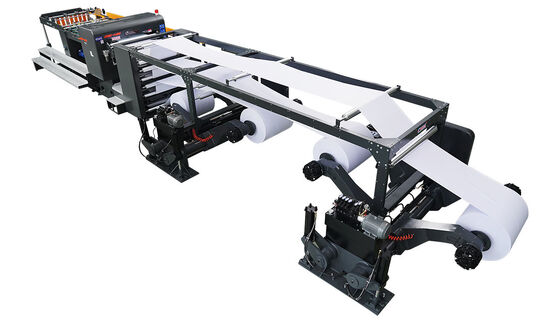

Optional Configuration: More Rolls Cutting

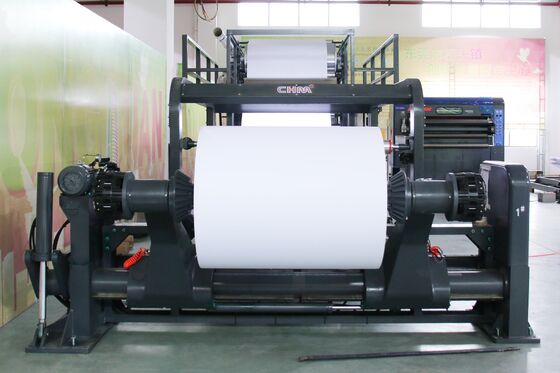

Hydraulic shaft-less unwind station

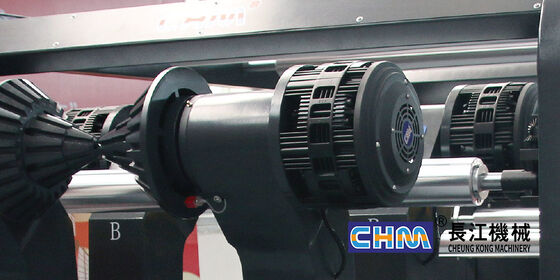

Multi-disc brake
High precision single rotary sheet cutter
Conveyor unit
Auto Jogger System
Middle Slitting and Waste Edge Collecting System
1)Style
Adjustable slitting knife and exhaust tube for waste edge on both sides.
2)Top slitter
Adjustable up or down, slitting width can be adjusted by manual.
3)Bottom slitter
The slitter are fixed, slitting width can be adjusted by manual.
4)Windmill: driven motor
5)Type-Y collecting pipe for waste edge.
High precision single rotary sheet cutter
1)Top Tool Apron Adopting cutting way of advanced, so as to decrease noise and load and prolong life of knife.
2)Bottom Tool Apron Tool Apron cast on time, then processing, with characteristic of stability.
3)Main driving roller: grainy surface, controlled by the air Pressure so as to grip the paper.
Auto-Squareness Adjustment System
1)Type:
Tool Apron fixed as the way of British, more efficiency.
2)Control Way:
Auto-adjust squareness of paper according to calibration in the Touching screen.
Static Eliminator System
1)Type:
Anti-static bar, can eliminate static in the sheets.
Paper Conveyer System
1)Type:
Horizontal conveying with multi-stage so as to counting and piling conveniently(high efficiency dust collecting equipments).
2)The first conveying stage
To separate cutting paper quickly.
3)The Second conveying stage To conveyer paper like shape of tile with slow speed, single or linkage acting control
Auto counting and Label inserting device
1)Type:
Insert after counting precisely
2)Function
A,After inputting number of paper pieces in HMI, then it can work according to requirements.
B,Refill defective product
Driving Motor system
1)AC servo motor for reclaiming blade.
2)AC motor for conveyer paper.
3)Inverter motor for the secondly conveyer strap.
4)AC motor for up and down of Stacker.
5)AC motor for front jogger.
6)AC motor for windmill of collecting waste edge.
7)AC motor for unwind stand.
Auto-tension control
Put the paper roll diameter and paper weight number into touching screen, the tension will be controlled by computer automatically.
Auto-EPC(Edge Paper Control)
Precision sensing nozzle which easily available and sensitive Fast detects various web lines for EPC system.
FAQ
1.Our cooperative partner
paper mill:Sun Paper,ND Paper ,Double A,APP, Onhing Paper,MYS,.Chenmingpaper.JHE paper ,C&CJOINTPRINTING CO.(HK)LID etc.
2.What kind of quality service do you offer to me?
All the parts of commodity will be ensured to be used for one year
CHM Machinery will maintain them for life.
Outside the warranty period, the Seller shall provide spare parts and services at a preferential price as soon as possible.
3. How do we guarantee quality?
Always pre-production samples before mass production;
Always final inspection before shipment;
4. What can you buy from us?
Paper sheeter machine, paper cutter, paper sheet machine, copy paper and packaging machine, cut-to-size paper and packaging machine. Why should you buy from us instead of other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China.
With the second largest facility in the world, nearly 140.000 square meters.
As a sheet solution expert, with the best R&D team and the highest number of patents, more than 110 items.
5.Who are we?
Our headquarter is located in Guangdong, China, started in 2010, selling to East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), Eastern Europe (2.00%), South Asia (2.00%), Southern Europe (2.00%), Southeast Asia (2.00%), Central America (2.00%), Western Europe (2.00%), North America (2.00%), Middle East (2.00%), Oceania (2.00%). Totally there are about 101-200 people in our office.
