Paper Cutter Machine roll to sheet cutting single sheeter machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1400III
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
High-speed paper cutter (300 cuts/min) with ±0.5mm precision. Handles 60-500gsm paper, PLC control, 380V power. Ideal for printing/packaging with multi-roll processing capability.
Product Details
Highlight:
rotary paper cutter 2500kg
,2500kg roll to sheet cutter
,roll to sheet cutter automatic
Power:
22kw 27kw
Maximum Cutting Width:
1400mm
Paper Range:
60-500gsm
Cutting Speed:
300m/min
Maximum Cutting Length:
450-1650mm
Cutting Accuracy:
±0.5mm
Control System:
PLC Control With Touch Screen
Product:
Paper Roll To Sheet Cutting Machine
Voltage:
380V
Max Speed:
300 Cuts/min
Product Description

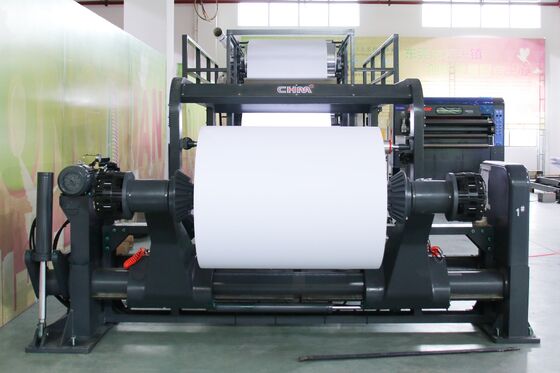

Paper Cutter Machine - Roll to Sheet Cutting Single Sheeter

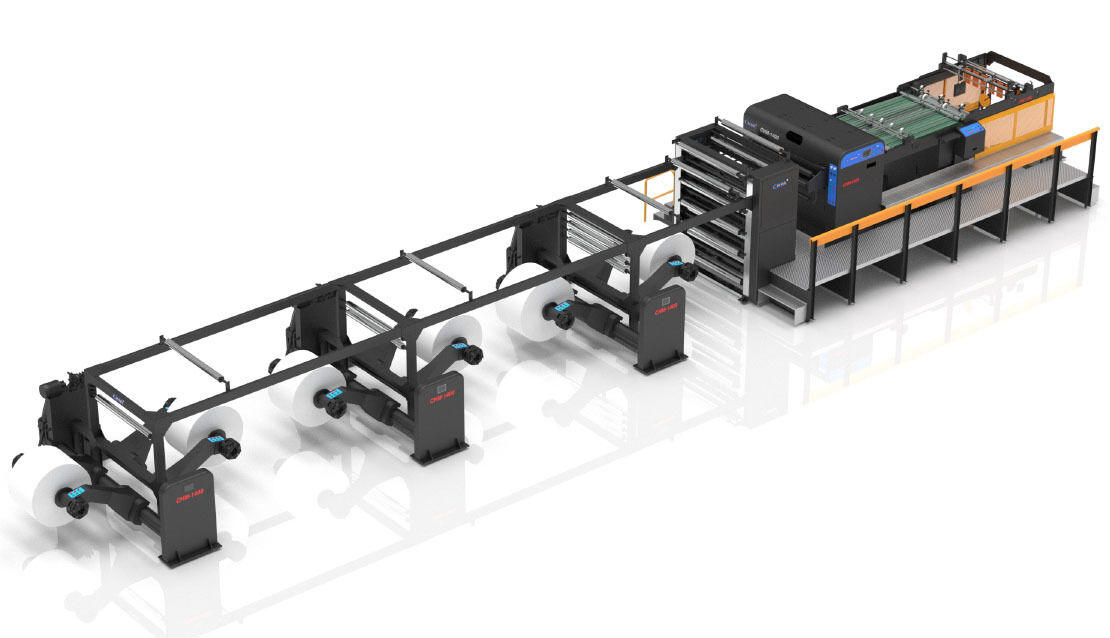

Automatic roll paper cutting machine designed for printing and packaging applications. This high-performance paper sheeting machine can process up to 6 rolls simultaneously with precision cutting and efficient operation.
Product Overview
CHM-1100 High Speed Precision Paper Sheeter for Printing and Packaging
This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling 60-500 GSM paper, it's ideal for printing, packaging, and paper suppliers. The modular design allows for multiple roll processing simultaneously.
CHM Machinery's main product is a computerized high-precision single rotary sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design.
Key Specifications
| Attribute | Specification |
|---|---|
| Machine Weight | 2500kg |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Total Power | 22 KW |
Technical Details
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
Standard Configuration

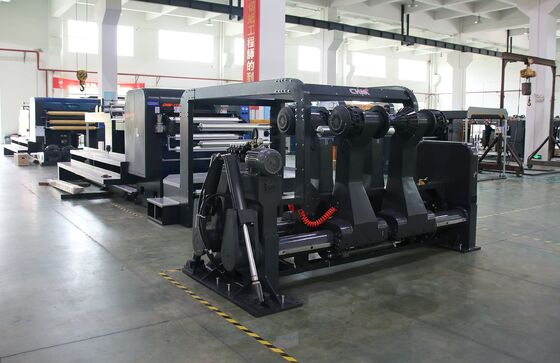

- Max Reel diameter: 1500mm (59")
- Max Reel width: 1100mm (43")
- Min Reel width: 350mm (14")
- Core size: 3",6",12" (Cone chuck)
- HYD. Driving: 3.75kw
- Pneumatic brake system
- Dancing roll with related bracket
Advanced Systems
Middle Slitting and Waste Edge Collecting System
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top and bottom slitters with manual width adjustment
- Type-Y collecting pipe for waste edge
High Precision Single Rotary Sheet Cutter
- Advanced cutting method reduces noise and extends knife life
- Stable bottom tool apron with precision casting
- Grainy surface main driving roller with air pressure control
Static Eliminator System
Anti-static bar effectively eliminates static in sheets.
Company Information
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories totaling 140,000 square meters. As the world's second largest sheeting machine manufacturer, we serve over 100 countries with annual sales exceeding 200 units.
Our facilities in Guangdong, Shandong, and Jiangsu support our position as an industry leader with a dedicated R&D team and comprehensive after-sales service.
Frequently Asked Questions
Quality & Service
- 1-year warranty on all parts with lifetime maintenance support
- Pre-production samples and final inspection before shipment
- Preferential pricing for spare parts after warranty period
Our Capabilities
- Specialized in paper sheeter machines and A4 production lines
- Over 110 patents in sheet machinery technology
- Global distribution network serving 100+ countries
