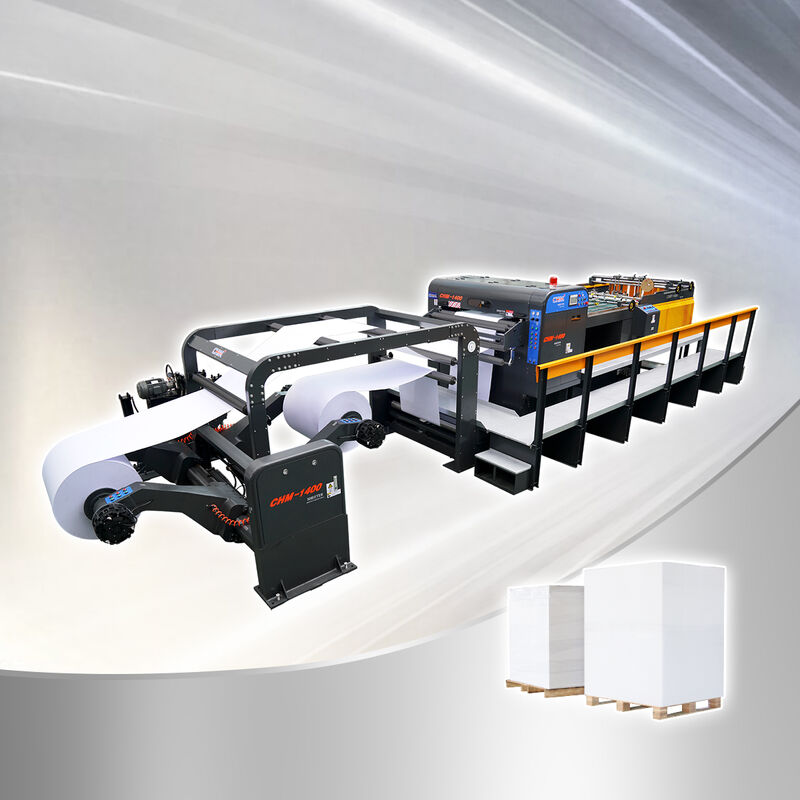

Paper Roll Sheeter Cutting Machine High Precision Paper Cutting Machinery
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
High-precision paper sheeter with ±0.5mm accuracy & 300m/min speed. PLC servo control handles 60-550gsm paper. Features auto tension, edge control & waste collection. Custom widths up to 1900mm available.
Product Details
Highlight:
high precision paper roll sheeter
,paper roll cutting machine with warranty
,industrial paper sheeter cutting machinery
Total Power:
22kW
Power Supply:
AC380V 50Hz
Maximum Cutting Width:
1100/1400/1700/1900mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description
High Precision Paper Roll Sheeter Cutting Machine
CHM Series Precision High Speed Single Rotary Knife Paper Sheeter
CHM Factory AC Servo Precision Sheeter - Paper Reel to Sheet Cutting Machine designed for superior performance and reliability in paper processing operations.
Machine Configuration
- Unwind Stand with automatic tension system and multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Decurler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyor System
- Electrostatic Eliminator System
- Auto-Squareness Adjustment System
- Auto Counting and Label Inserting Device
- Auto Jogger System
Product Description
CHM Machinery specializes in computerized high-precision single rotary sheeters, engineered specifically for paper mills, paper distributors, and printing houses. Our equipment enhances slitting capacity while ensuring superior quality output.
The single-drum sheeter features an innovative "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed, delivering precise cuts with exceptional stability through AC servo-driven control.
This versatile machine handles paper weights from 60 to 550 gsm, with capability to process thin paper as light as 30 grams. It can simultaneously cut 8-12 rolls at speeds up to 100 cuts per minute, making it ideal for both thick and thin paper applications.
Technical Specifications
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Method | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Paper Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
Machine Components
Company Profile
As dedicated manufacturers since 2004, CHM Machinery specializes exclusively in paper sheeter machines and A4 production lines. With 21 years of industry expertise, we have grown into a professional paper sheeter machine manufacturer operating three factories across China.
Our facilities in Guangdong, Shandong, and Jiangsu span nearly 140,000 square meters, establishing us as the world's second largest sheeting machine manufacturer with independent production capacity. We maintain a professional after-sales team and robust research and development department.
Since introducing our first single knife sheeter in 2006, we have achieved annual sales exceeding 200 units, serving customers in over 100 countries worldwide. We invite you to share your detailed requirements including paper type, gram weight, width, and capacity for a customized solution.
Contact Information
Website: www.chmmachinery.com
Email: chm017@szchm.com
WhatsApp/WeChat: 86-13215242947 (Ms. Ada)
Frequently Asked Questions
Our Cooperative Partners
Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, and other leading paper industry companies.
Quality Service Commitment
All machine components carry a one-year warranty, with CHM Machinery providing lifetime maintenance support. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.
Quality Assurance Process
We conduct pre-production samples before mass production and perform final inspections before shipment to ensure consistent quality standards.
Product Range
Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, cut-to-size paper and packaging equipment.
Why Choose CHM Machinery?
As the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, we offer comprehensive sheet solutions backed by the best R&D team and over 110 patents.
