Paper Sheeting Machine Paper CHM Machinery Single Sheeter
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
CHM high-speed paper sheeter: ±0.5mm accuracy, 300m/min speed, handles 60-550gsm paper. PLC servo control with automatic tension, EPC, and waste collection systems for precision cutting.
Product Details
Highlight:
Paper sheeting machine with warranty
,Single sheeter paper cutting machine
,CHM paper sheeting machinery
Total Power:
22kW
Power Supply:
AC380V 50Hz
Dimensions:
6000mm X 2500mm X 1800mm
Maximum Cutting Width:
1100mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description
CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife Paper Sheeter Machine
Advanced Configuration Features
- Unwind Stand with automatic tension system and multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyor System
- Electrostatic eliminator System
- Auto-Squareness Adjustment System
- Auto counting and Label inserting device
- Auto Jogger System
Machine Description
CHM Machinery's computerized high-precision single rotary sheeter is specifically designed for paper mills, paper distributors, and printing houses. This advanced machine enhances slitting capacity while ensuring superior quality output. The single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design, where the lower blade remains stationary during paper transport while the upper blade rotates continuously at high speed.
The AC servo-driven control system ensures accurate and stable operation of the single rotary sheet cutter. This versatile machine handles paper weights from 60 to 550 gsm, and can efficiently cut thin paper as light as 30 grams. With the capability to process 8-12 rolls simultaneously and achieve cutting speeds up to 100 cuts per minute, this sheeter excels where many others struggle.
Technical Specifications
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300 m/min | 300 m/min | 300 m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper-Cutting Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (LxWxH) | 12518mm × 3853mm × 2230mm | 12518mm × 4153mm × 2230mm | 12518mm × 4353mm × 2230mm |

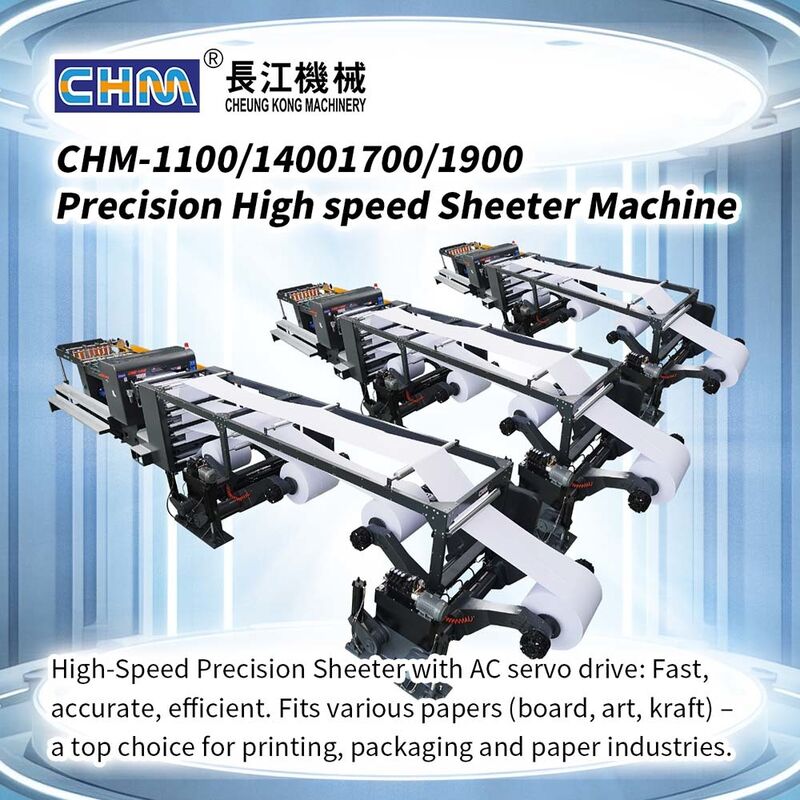

High-Speed Precision Performance
The CHM-1100/1400/1700/1900 Precision High Speed Sheeter Machine features AC servo drive technology for fast, accurate, and efficient operation. This versatile system accommodates various paper types including board, art, and kraft papers, making it an ideal choice for printing, packaging, and paper industries.
Machine Components & Operation
Frequently Asked Questions
Our Cooperative Partners
We proudly serve leading paper mills including Sun Paper, Nine Dragons Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, and many others.
Quality Service Commitment
All machine components are guaranteed for one year, with CHM Machinery providing lifetime maintenance support. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.
Quality Assurance Process
We maintain strict quality control through pre-production samples before mass production and comprehensive final inspection before shipment to ensure every machine meets our high standards.
Product Range
Our product portfolio includes paper sheeter machines, paper cutters, copy paper and packaging machines, and cut-to-size paper and packaging machinery solutions.
Competitive Advantages
CHM is the exclusive Hong Kong brand sheet machinery producer in China, operating from the world's second largest facility spanning nearly 140,000 square meters. As sheet solution experts, we maintain the industry's best R&D team with over 110 patents.
Company Profile
Founded in 2010 and headquartered in Guangdong, China, we employ 101-200 professionals and serve global markets including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), and numerous other regions worldwide.
