a4 size Paper Sheeting Machine Paper CHM Machinery Single Sheeter
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
CHM A4 paper sheeter: ±0.5mm precision, 300m/min speed, handles 60-550gsm paper. PLC servo control with automatic tension, edge control, and waste collection systems for superior efficiency.
Product Details
Highlight:
A4 paper sheeting machine
,single sheeter paper machine
,CHM paper sheeting machine
Total Power:
22kW
Power Supply:
AC380V 50Hz
Dimensions:
6000mm X 2500mm X 1800mm
Maximum Cutting Width:
1100mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description

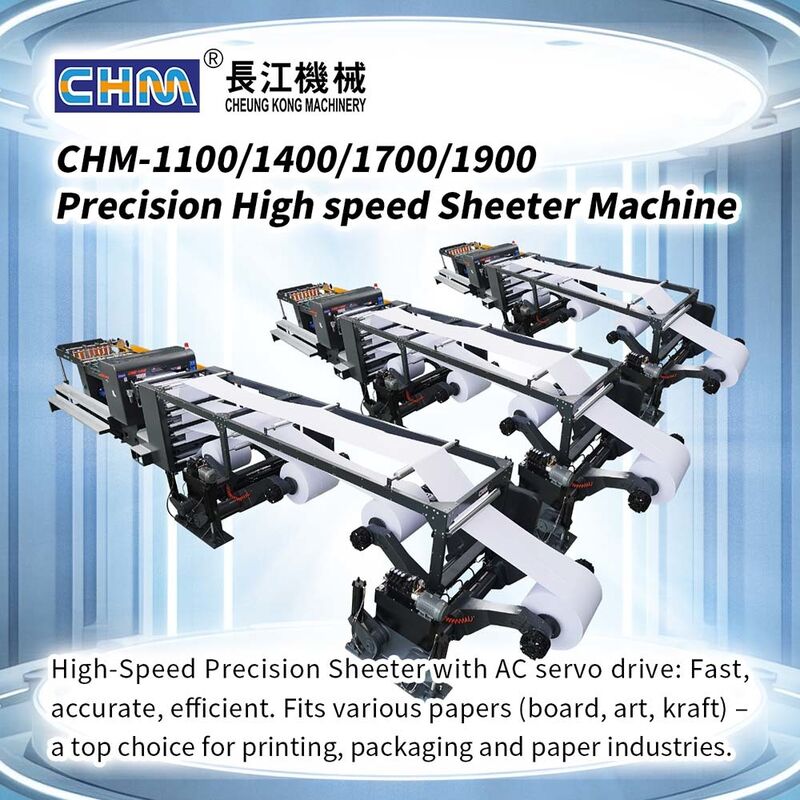

CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife Paper Sheeter Machine
Machine Configuration
- Unwind Stand: Automatic tension system with multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyor System
- Electrostatic Eliminator System
- Auto-Squareness Adjustment System
- Auto Counting and Label Inserting Device
- Auto Jogger System
Product Description
CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior quality output.
The single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. The AC servo-driven control system ensures accurate and stable cutting performance.
This versatile machine handles paper weights from 60 to 550 gsm, with the capability to cut thin paper as light as 30 grams. It can process 8-12 rolls simultaneously at speeds up to 100 cuts per minute. CHM Machinery's expertise ensures reliable performance with both thick and thin paper materials.
Technical Specifications
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Method | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300 m/min | 300 m/min | 300 m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper Cutting Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (L×W×H) | 12518mm × 3853mm × 2230mm | 12518mm × 4153mm × 2230mm | 12518mm × 4353mm × 2230mm |
Machine Components
Frequently Asked Questions
Our Cooperative Partners
Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, and others.
What kind of quality service do you offer?
All components are guaranteed for one year, with CHM Machinery providing lifetime maintenance support. Outside the warranty period, spare parts and services are offered at preferential prices with prompt delivery.
How do we guarantee quality?
Pre-production samples are always provided before mass production, and final inspection is conducted before shipment to ensure quality standards.
What products can you buy from us?
Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, cut-to-size paper and packaging equipment.
Why choose CHM Machinery over other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China, operating from the world's second largest facility spanning nearly 140,000 square meters. As sheet solution experts, we maintain the best R&D team with over 110 patents.
Who are we?
Headquartered in Guangdong, China since 2010, we serve global markets including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), and other regions worldwide. Our organization employs 101-200 professionals.
