CHM 1400 Single Sheeter Paper Roll Sheeter Cutting Machine Paper Sheeting Machine
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
CHM Series Precision High-Speed Single Rotary Knife Paper Sheeter Machine CHM Machinery's computerized high-precision single rotary sheeter is engineered for paper mills, distributors, and printing houses. This advanced machine enhances slitting capacity while ensuring superior quality output. ...
Product Details
Highlight:
Single Sheeter
,Paper Roll Sheeter Cutting Machine
,Paper Sheeting Machine
Total Power:
22kW
Power Supply:
AC380V 50Hz
Maximum Cutting Width:
1100/1400/1700/1900mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description

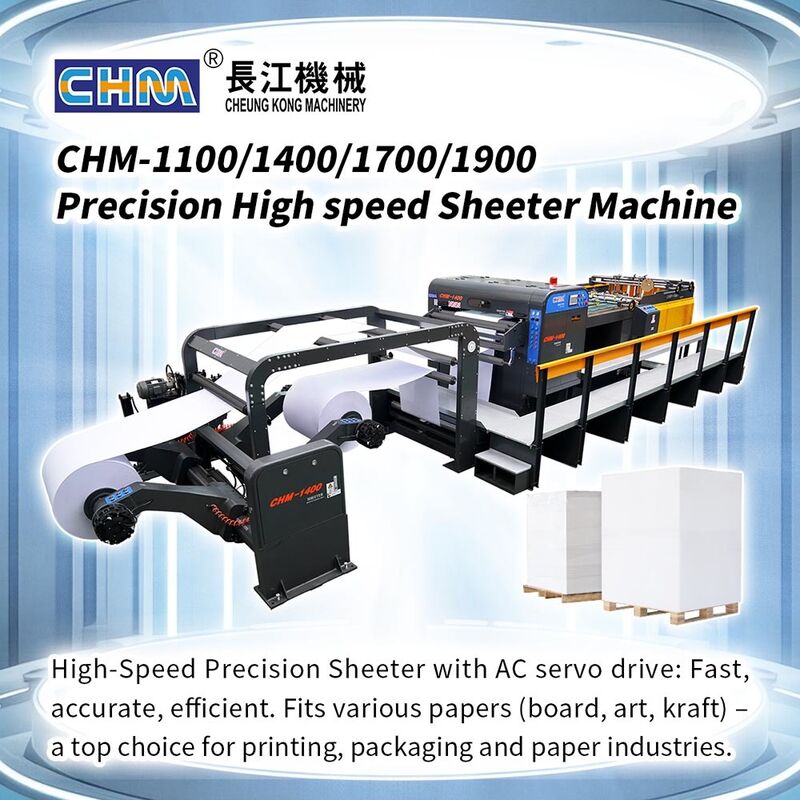

CHM Series Precision High-Speed Single Rotary Knife Paper Sheeter Machine
CHM Machinery's computerized high-precision single rotary sheeter is engineered for paper mills, distributors, and printing houses. This advanced machine enhances slitting capacity while ensuring superior quality output.
Advanced Configuration Features
- Unwind Stand with automatic tension system and multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyor System
- Electrostatic Eliminator System
- Auto-Squareness Adjustment System
- Auto counting and Label Inserting Device
- Auto Jogger System
Technical Specifications
| Specification | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Method | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300m/min | 300m/min | 300m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (L×W×H) | 12518×3853×2230mm | 12518×4153×2230mm | 12518×4353×2230mm |

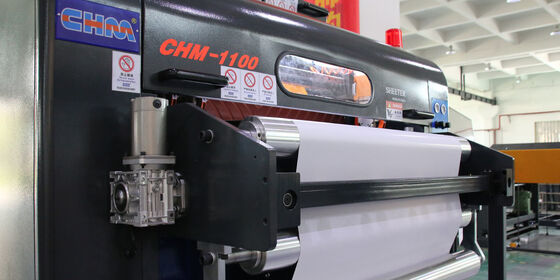

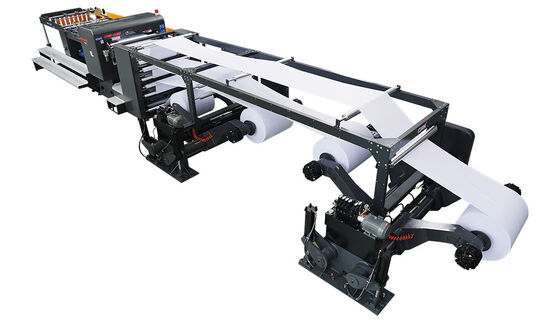

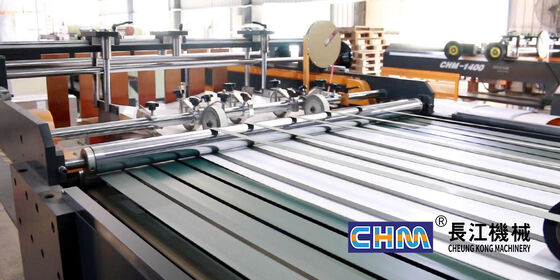

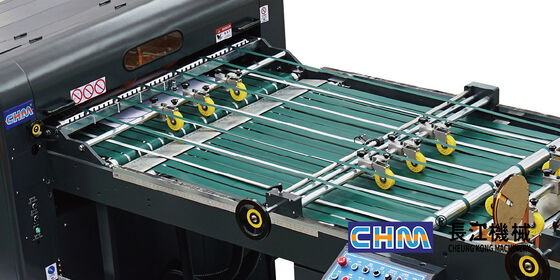

Machine Components Gallery
About CHM Machinery
Established in 2004, CHM Machinery has grown into a leading paper sheeter machine manufacturer with three factories spanning nearly 140,000 square meters across Guangdong, Shandong, and Jiangsu. As the world's second largest sheeting machine manufacturer with independent production capacity, we specialize in paper sheeter machines and A4 production lines.
Contact Us for Custom Solutions
Share your requirements—GSM, size, reel width, and paper type—and we'll craft a tailor-made optimal solution for your needs.
Website: https://www.chmmachinery.com
Email: chm017@szchm.com
WhatsApp/WeChat: 86-13215242947 (Ms. Ada)
Frequently Asked Questions
Our Cooperative Partners
Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, and many others.
Quality Service Commitment
All parts are guaranteed for one year, with lifetime maintenance support. Outside warranty, we provide spare parts and services at preferential prices.
Quality Assurance Process
Pre-production samples before mass production; final inspection before shipment.
Our Product Range
Paper sheeter machines, paper cutters, copy paper and packaging machines, cut-to-size paper and packaging solutions.
Why Choose CHM Machinery?
As the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, we offer expert sheet solutions with the best R&D team and over 110 patents.
Company Overview
Headquartered in Guangdong since 2010, serving global markets including East Asia, Africa, South America, and beyond with 101-200 dedicated professionals.
