CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm

Brand Name:	CHM Machinery
Model Number:	CHM-SGT1400H/1700H
MOQ:	1 set
Price:	180000-240000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Cutting Way:

Upper And Lower Rotary Cutting Mechanism

Refence Weight Of Cutting Paper:

200-1000GSM

Cutting Accuracy:

±0.3mm

Max Cutting Speed:

300sheets/min

Max.cutting Meter Speed:

300m/min

Cutting Length Range:

450-1650mm

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

double rotary paper sheet cutter

1700mm reel to sheet cutting machine

paper roll cutter with warranty

Product Description

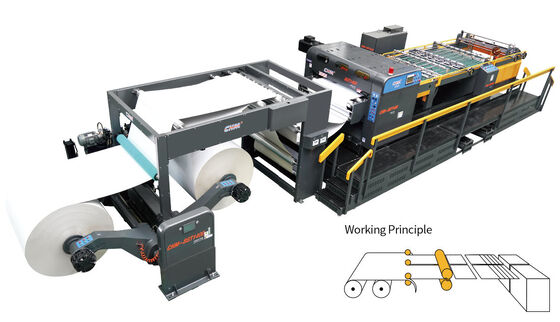

CHM Double Rotary Paper Sheet Cutter Machine - 1700mm

Advanced double rotary sheeter machine featuring AC servo drive technology from Taiwan and Britain for high-precision paper cutting operations.

Key Features

AC servo motor drive for fast and stable cutting performance
German precision cutting knives for superior cutting accuracy
Light touch computer interface for easy operation
Heavy-weight paper compatibility (150-1000gsm)
Cutting accuracy: ±0.3mm industry-leading performance
Flawless finish with no lint, glare spots, or pressure marks

Technical Specifications

Model	CHM-SGT1400H/1700H Double Rotary Sheeter Machine
Maximum Cutting Width	1700mm (66.9")
Paper Weight Range	150-1000gsm
Cutting Accuracy	±0.3mm

Material Compatibility

Cardstock, coated paper, kraft paper, cultural paper, offset paper, glossy photo paper, metallic cardstock, aluminum foil, laser holographic paper, and tobacco/liquor packaging materials.

Standard Configuration

Unwind Stand with Railway and Trolley & Auto-tension Control (Two Sets)
Middle Slitting and Waste Edge Collecting System
High Precision Double Rotary Sheet Cutter
Squareness Adjustment System
Static Eliminator System
Paper Conveyor System
Auto Counting and Label Inserting Device
Auto Jogger System
Driving Motor System
Sheet Reject Gate
Accessory Components

Optional Features

Automatic Pallet Change System
Automatic Paper Splicing System

System Components

Hydraulic Shaft-less Unwind Station

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 0

Multi-disc Brake System

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 1

Auto Web Guide System

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 2

Electric De-curl Unit

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 3

Conveyor Unit

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 4

Auto Jogger System

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 5

Middle Slitting and Waste Edge Collecting System

CHM Double Rotray Paper Sheet Cutter Machine Reel To Sheet Cutting Machine 1700mm 6

Company Profile

CHM Machinery specializes in paper sheeter machines and A4 production lines. Established in 2004, we have grown into a professional manufacturer with three factories spanning nearly 140,000 square meters in Guangdong, Shandong, and Jiangsu.

As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain an annual sales volume of over 200 units exported to more than 100 countries worldwide.

Quality Assurance & Service

All parts guaranteed for one year with lifetime maintenance support
Pre-production sampling and final inspection before shipment
Professional R&D team with over 110 patents
Extensive global installation experience

Major Clients

Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd., and other leading paper mills worldwide.
