Paper Sheeting Machine Paper Cutting Paper 40-550 Gsm CHM Sheeter Machine
Product Details
Paper sheeting machine 40-550 GSM
,Paper cutting machine CHM
,Paper sheeting machinery
- Unwind Stand with automatic tension system and multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyer System
- Electrostatic eliminator System
- Auto-Squareness Adjustment System
- Auto counting and Label inserting device
- Auto Jogger System

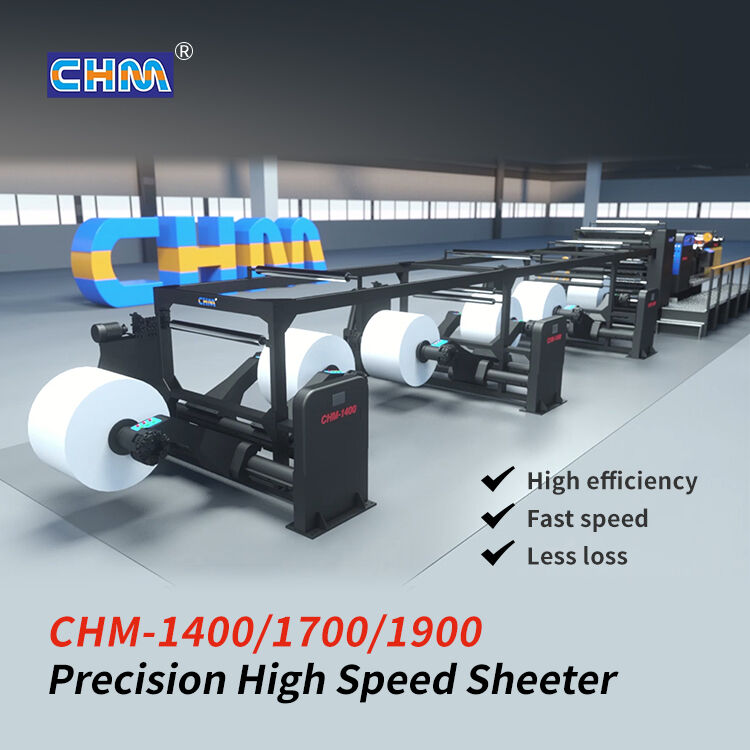

CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior quality output.

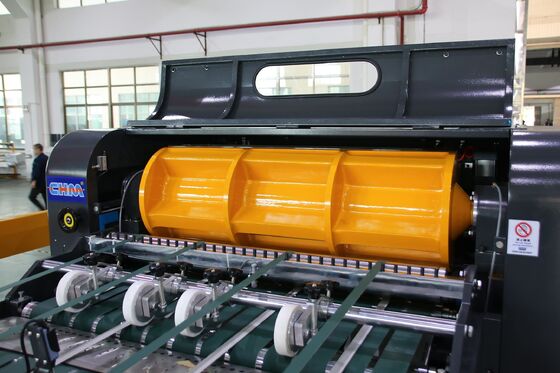

The single-drum sheeter features an innovative "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. The AC servo-driven control system ensures exceptional accuracy and stability throughout the cutting process.
This versatile machine handles paper weights ranging from 60 to 550 GSM. For thin paper applications (30 grams), it can simultaneously cut 8-12 rolls at speeds up to 100 cuts per minute. CHM Machinery's expertise ensures reliable performance with both thick and thin paper materials.
| Specification | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Method | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Meter Speed | 300 m/min | 300 m/min | 300 m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (L*W*H) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, and other industry leaders.
All machine components are guaranteed for one year, with CHM Machinery providing lifetime maintenance support. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.
Pre-production samples are always provided before mass production, and final inspections are conducted before shipment to ensure excellence.
Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, and cut-to-size paper and packaging equipment.
CHM is the only Hong Kong brand sheet machinery producer in China, operating from the world's second largest facility spanning nearly 140,000 square meters. As sheet solution experts, we maintain the industry's best R&D team with over 110 patents.
Headquartered in Guangdong, China since 2010, we serve global markets including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), and other regions worldwide. Our team comprises 101-200 dedicated professionals.
