Compact A4 copy Sheeter And Packing Machine Output 8-10 tons per day A4 Paper Production Line CHM Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-A4-2
Trading Properties
Minimum Order Quantity:
1 set
Price:
165000-250000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
Compact High Speed A4 Sheeter and Packing Machine Output:200 tons per month A4 Paper Production Line CHM Machine Product Overview The CHM-A4-2 is a compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line that utilizes advanced Twin Rotary Knife Synchronize ...
Product Details
Highlight:
compact A4 sheeter machine
,high speed A4 packing machine
,A4 paper production line
Paper Width:
Gross Width 850 Mm, Net Width 840mm
Cutting Numbers:
2 Cutting-A4 210mm (width)
Paper Roll's Diameter:
Max.Ф1400mm. Min.Ф600mm
Paper Core's Diameter:
3"(76.2mm)or According To The Clients' Demand
Packing Paper Grade:
High-grade Copy Paper; High-grade Office Paper; High Grade Free Wood Paper Etc.
Paper Weight:
60-100g/m²
Sheet Length:
297mm (specially Design For A4 Paper, The Cutting Length Is 297mm)
Ream Amount:
500 Sheets Max. Height: 45-55mm
Product Description

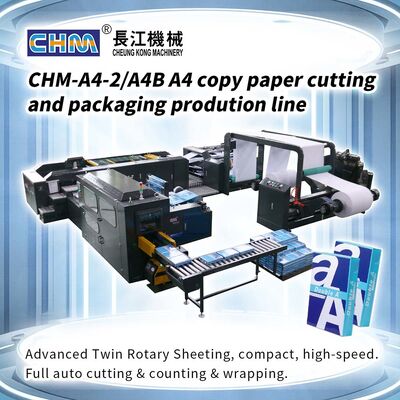

Compact High Speed A4 Sheeter and Packing Machine
Output:200 tons per month A4 Paper Production Line CHM Machine
Product Overview
The CHM-A4-2 is a compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line that utilizes advanced Twin Rotary Knife Synchronize Sheeting technologies. As the original developer of China's first paper sheeter machine and A4 copy paper production line, CHM Machinery has been leading the industry since 2004.
Key Specifications
| Attribute | Value |
|---|---|
| Paper Width | Gross width 850 mm, net width 840mm |
| Cutting Numbers | 2 cutting-A4 210mm (width) |
| Paper Roll's Diameter | Max.Ф1400mm, Min.Ф600mm |
| Paper Core's Diameter | 3" (76.2mm) or according to client demand |
| Paper Weight | 60-100g/m² |
| Sheet Length | 297mm (specially designed for A4 paper) |
| Ream Amount | 500 sheets Max. Height: 45-55mm |
| Production Output | 10 reams/min, 8-10 tons per 8 hours |
Compact Design: Occupies only 8×9 meters of floor space, ideal for users with monthly production capacity of 200-300 tons.

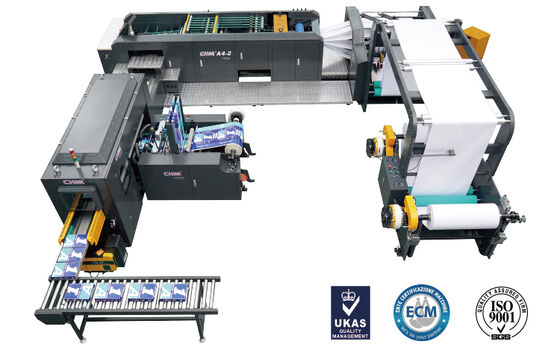

Production Line Components

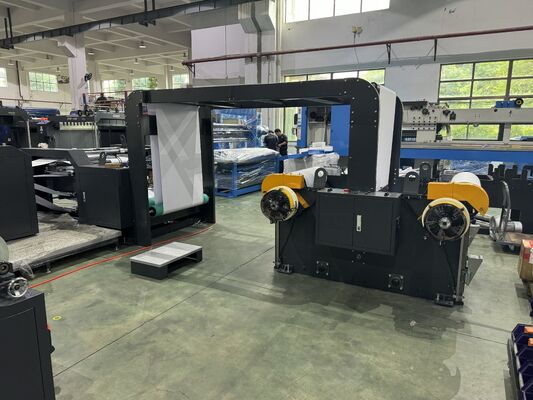

Unwind Stand
Automatic Tension Control System

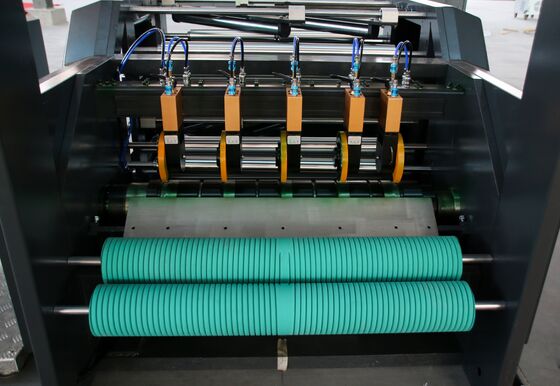

High Precision Cutting Knife System
Transporting System
Paper Collecting System
CHM-A4B Wrapping Machine
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Power | 18 KW |
Control System
All machines are controlled by PLC, including speed control, paper count, paper ream output, fault alarm and automatic stop (Indicate fault code shown on the panel screen).
Finished Products
Company Profile
CHM Machinery specializes in manufacturing paper sheeter machines and A4 production lines with three factories in Guangdong, Shandong and Jiangsu covering nearly 140,000 square meters. We've grown to become the world's second largest sheeting machine manufacturer with independent production capacity.
Frequently Asked Questions
- What advantages do your A4 production line have?
We have the R&D capabilities and high-speed cutting technology. Our machines operate 24 hours per day with a maximum production capacity of 1600 tons, holding 70% of the market share. - Do you have any cases?
Many paper mills use our equipment, including ND Paper (Pakistan), Double A, Sun Paper, and Industry. We can provide videos of machines operating in your country. - Why choose you instead of other suppliers?
CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have customers who have used our equipment for more than a decade. - How do we guarantee quality?
We always provide pre-production samples before mass production and conduct final inspections before shipment. - What kind of quality service do you offer?
All parts are guaranteed for one year, with CHM Machinery providing lifetime maintenance.
