Single Rotary Paper Sheeting Machine
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
High-speed single rotary paper sheeter with ±0.5mm precision, 300m/min cutting speed, and PLC servo control. Handles 60-550gsm paper with automatic tension, edge control, and waste collection systems for superior efficiency.
Product Details
Highlight:
a4 size paper cutting machine
,a4 size paper sheeter
,a4 size paper sheeter machine
Total Power:
22kW
Power Supply:
AC380V 50Hz
Dimensions:
6000mm X 2500mm X 1800mm
Maximum Cutting Width:
1100mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description
Single Rotary Paper Sheeting Machine

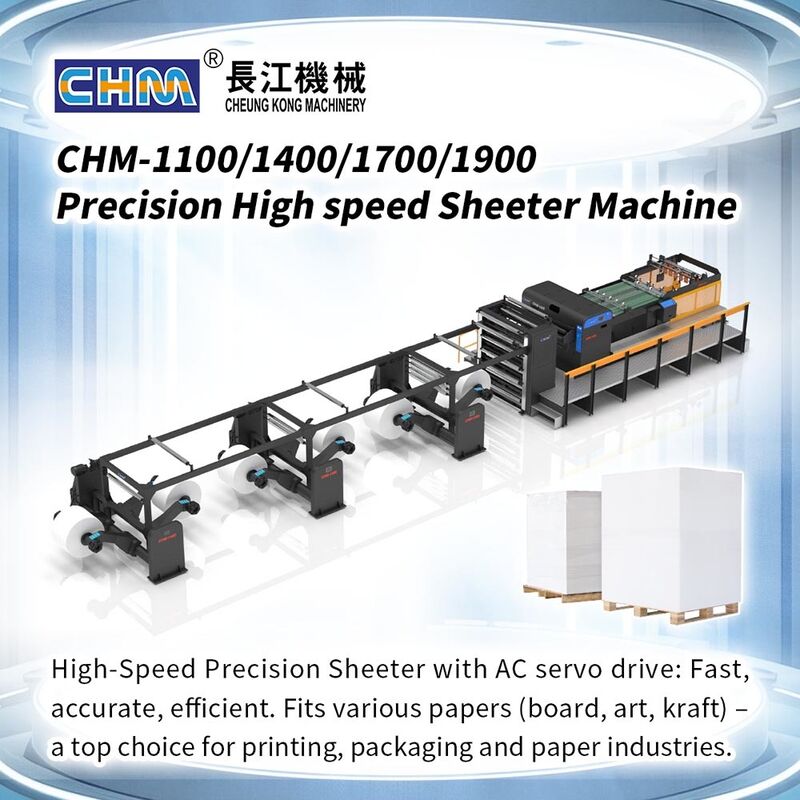

CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife Paper Sheeter Machine
Machine Configuration
- Unwind Stand with automatic tension system and multi-point automatic braking
- Auto-EPC (Edge Paper Control)
- Deculler System (Anti-curvature Device)
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter
- Paper Conveyor System
- Electrostatic Eliminator System
- Auto-Squareness Adjustment System
- Auto Counting and Label Inserting Device
- Auto Jogger System
Product Description
CHM Machinery's computerized high-precision single rotary sheeter is specifically designed for paper mills, paper distributors, and printing houses. This advanced machine enhances slitting capacity while ensuring superior quality output.
The single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. The AC servo-driven control system ensures accurate and stable cutting performance.
This versatile machine handles paper weights from 60 to 550 gsm. For thin paper as light as 30 grams, it can simultaneously cut 8-12 rolls at speeds up to 100 cuts per minute. CHM Machinery's expertise ensures reliable performance with both thick and thin paper materials.
Technical Specifications
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Method | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300 m/min | 300 m/min | 300 m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper-Cutting Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (L×W×H) | 12518mm × 3853mm × 2230mm | 12518mm × 4153mm × 2230mm | 12518mm × 4353mm × 2230mm |
Machine Components & Operation
CHM Series Paper Sheeter Overview
Paper Sheeter in Operation
Close-up of Cutting Mechanism
Hydraulic Shaft-less Unwind Station
Multi-disc Brake System
High Precision Single Rotary Sheet Cutter
Conveyor Unit
Auto Jogger System
Middle Slitting and Waste Edge Collecting System
Frequently Asked Questions
Our Cooperative Partners
Paper mills: Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C Joint Printing Co. (HK) Ltd, etc.
What kind of quality service do you offer?
All commodity parts are guaranteed for one year. CHM Machinery provides lifetime maintenance. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.
How do we guarantee quality?
We always provide pre-production samples before mass production and conduct final inspections before shipment to ensure quality standards.
What products can you buy from us?
Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, cut-to-size paper and packaging machinery.
Why should you buy from us instead of other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide at nearly 140,000 square meters. As sheet solution experts, we have the best R&D team and hold over 110 patents.
Who are we?
Our headquarters is located in Guangdong, China, established in 2010. We serve global markets including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), and other regions worldwide. Our organization employs 101-200 professionals.
