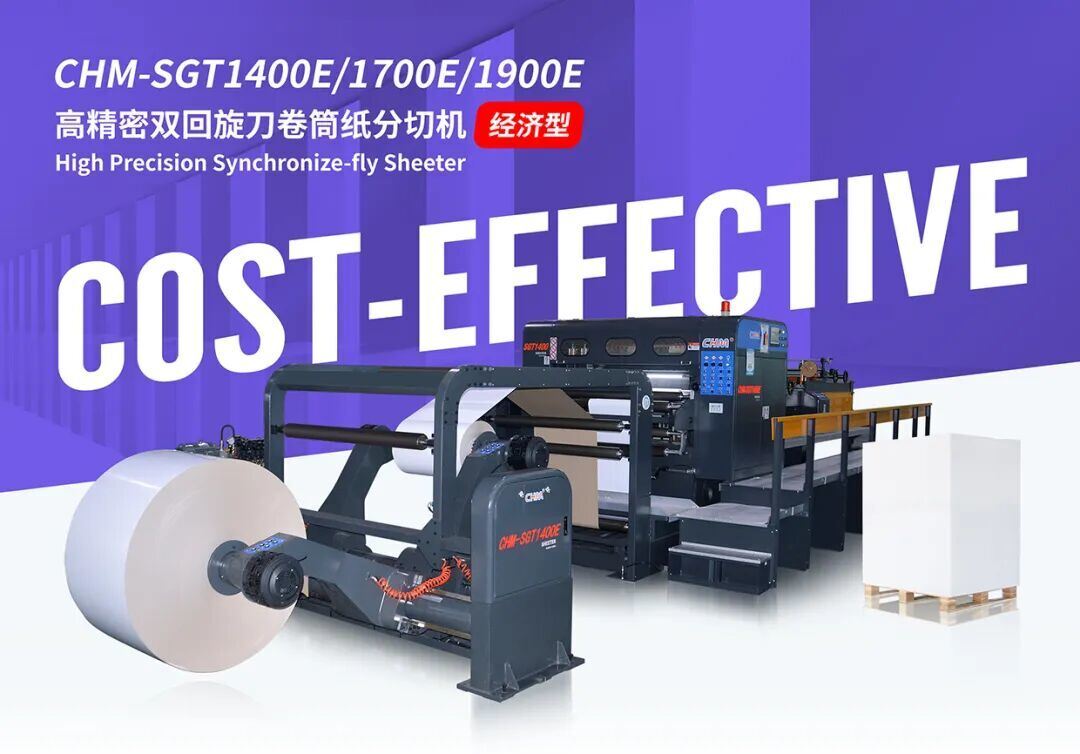

CHM Economic Double Series High Speed Paper Sheeter Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM
Certification:
CE
Model Number:
CHM-SGT1400E
Trading Properties
Minimum Order Quantity:
1 set
Price:
60000-140000
Payment Terms:
L/C, D/A, D/P, T/T
Supply Ability:
2000 sets
Product Summary
Technical Parameter Model CHM-SGT1400E 1. Type of cutting Top blade and bottom blade rotary 2. weight of paper 200-1000 GSM 3. reel diameter Max 1800mm(71") 4. Finished width Max 1400mm(55”) 5. Finished sheet-Length Min.450-Max.1650 mm 6. Num. of rolls cutting 2 rolls 7. Cutting accuracy ±0.5mm(L
Product Details
Highlight:
Economic high speed paper sheeter
,Double high speed paper sheeter
,Double paper plate sheet cutting machine
Warranty:
1 Year
Product Description
Technical Parameter
| Model | CHM-SGT1400E |
|---|---|
| 1. Type of cutting | Top blade and bottom blade rotary |
| 2. weight of paper | 200-1000 GSM |
| 3. reel diameter | Max 1800mm(71") |
| 4. Finished width | Max 1400mm(55”) |
| 5. Finished sheet-Length | Min.450-Max.1650 mm |
| 6. Num. of rolls cutting | 2 rolls |
| 7. Cutting accuracy |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
| 8. Max. speed of cutting | 300cuts/min |
| 9. Max. cutting speed | 300m/min |
| 10. Requirement of the air pressure | 0.8MPa |
| 11. Voltage | AC380V/220Vx50Hz |
| 12. Total power: | 88KW |
| 13. Output | The real output depend on the material, and the weight of the paper, and right operate process |
Poroduct Details
CHM engineers are at the client's installation site.
Ms. Ada
Overseas sales
- Email: chm017@szchm.com
- Tel: +8613215242947
- WhatsApp: 8613215242947
-
WeChat:
+8613215242947
