A4 Copy Paper Cutting Production Line Machine A4 Paper Making Machines
Product Details
18kw a4 paper making machines
,a4 paper making machines 1.5m
,1.5m a4 copy paper cutting machine

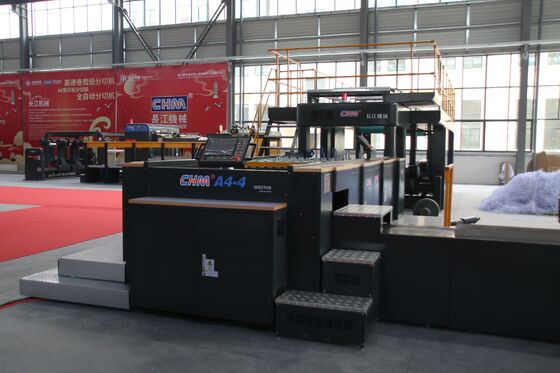

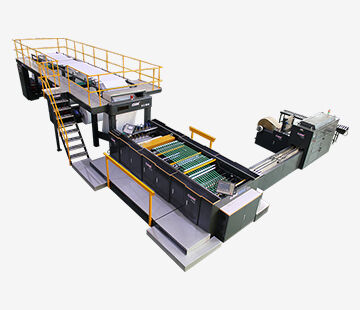

CHM-A4-4/5 high-speed production line with output of 20/25/35 reams per minute, capable of 20/25/30 tonnes in 8 hours. This A4 copy paper sheeter production line is specifically designed for efficient cutting of A4 copy paper, suitable for general A4 paper, A3 paper, and art paper. Featuring advanced cutting technology and optimized cutting modes, it delivers rapid, precise cutting to specified dimensions. The equipment boasts simple structure, easy operation, and high cutting precision. Custom sizes available including American size and test paper size.
| Attribute | Value |
|---|---|
| Production speed | Max 280m/min |
| Cutting accuracy | ±0.2mm |
| Power | 32kw+18kw+18kw |

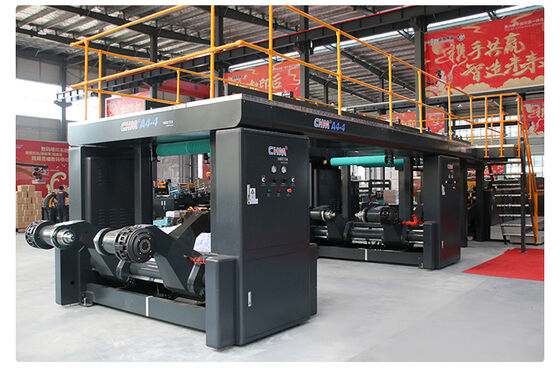

| Machine Type | 2 rolls loaded unwind stand *2sets plus 1 roll loaded unwind stand *1 set (shaftless and hydraulic floor pickup system) |
| Diameter of the paper roll | Max.Ф1500mm |
| Paper rack's material | Steel |
| Clutch device | Pneumatic braker and control |
| Clip arm's adjustment | Manual adjust by oil pressure |
| CHM Type | CHM-A4-4 | CHM-A4-5 |
|---|---|---|
| Paper Width | 845-850 mm | 1055-1060 mm |
| Production Speed | Max 280 m/min | Max 280 m/min |
| Cutting Accuracy | ±0.2 mm | ±0.2 mm |
| Number of Paper Rolls | 4 Rolls | 5 Rolls |
| Pockets | 4 Pockets | 5 Pockets |
| Output of the Ream | Max 30 Reams/min | Max 37 Reams/min |
| Power | 32 kW + 18 kW + 18 kW | 34 kW + 18 kW + 18 kW |
| Dimension (L x W x H) | 17681 mm × 4140 mm × 3190 mm | 20114 mm × 4355 mm × 3190 mm |
When paper passes through the inductor, it automatically feeds back to the PLC control system to adjust brake load, increasing or reducing tension to automatically control paper tension.
| Specification | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max: 55 mm; Min: 45 mm |
| Packing Roll Diameter | Max: 1000 mm; Min: 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Design Speed | Max: 50 reams/min |
| Operation Speed | Max: 35 reams/min |
| Power | 18 KW |
All machines are controlled by PLC with comprehensive functions including speed control, paper count, ream output tracking, fault alarm with automatic stop, and fault code display on panel screen.
Company Introduction
We are manufacturers,CHM Machinery only products paper sheeter machine and A4 production line are designed for 2 series. CHM making first paper rolls to sheet cutting machine and A4 production line was produced in China.CHM Machinery was established in 2004. After 21 years of hard work, it has developed into a professional paper sheeter machine manufacturer with three factories.
The three factories in Guangdong, Shandong and Jiangsu have a total area of nearly 140,000 square meters,becoming the world's second largest sheeting machine manufacturer with independent production capacity;We have the most professional after-sales team and research and development, as far as we know, the single knife sheeter in 2006 has been sheeter cutting paper rolls. Annual sales of more than 200 units, sold to more than 100 countries around the world.
We have many successful installation cases, we can checks whether the country has our equipment.
Please tell us your detailed requirements,According to your paper, gram weight, width,capacity , make the most suitable for your paper roll sheet cutting model.Please contact me if you have any inquiries.
Please feel free to ask any questions about our products or tell us your sourcing needs.
https://www.chmmachinery.com
Email:chm017@szchm.com
Whatsapp/Wechat Us On These Nos. No: 86-13215242947 ( Ms. Ada)
We have strong R&D capabilities and high-speed cutting technology. Our machines operate 24 hours daily with maximum production capacity of 1600 tons, holding 70% market share.
Many paper mills use our equipment including ND Paper (Pakistan), Double A, Sun Paper. We can provide machine videos from your country.
CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have long-term customers and engineers with 15+ years experience.
We conduct pre-production samples before mass production and final inspection before shipment.
All parts are guaranteed for one year with lifetime maintenance. Outside warranty, we provide spare parts and services at preferential prices.
