High Speed Precision Paper Sheeter Machine with 60-500 GSM Capacity and Max 1500mm Reel Diameter

Basic Properties
Place of Origin: China
Brand Name: CHM Machinery
Certification: CE
Model Number: CHM-1100
Trading Properties
Minimum Order Quantity: 1 set
Price: 50000-120000
Payment Terms: ,L/C,D/A,D/P,T/T
Supply Ability: 200 sets
Tags

paper sheeter machine

paper sheeter

roll paper sheeter
Product Summary
CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging High Speed Paper Sheeter Machine Arton Die Cut Machine Product Overview This high-speed precision paper sheeter excels in thin paper processing, featuring a "Top blade rotary, bottom blade fixed" flying shear design. The machine ...

Product Details

Highlight:

1500mm Paper Sheeter Machine

,

22KW Paper Sheeter Machine

,

Die Cut chm sheeter
Machine Weight: 2500kg
Type Of Cutting: Top Blade Rotary, Bottom Blade Fixed
Weight Of Paper: 60-500 GSM
Reel Diameter: Max 1500mm (59")
Finished Width: Max 1100mm (43")
Finished Sheet Length: Min. 450 - Max. 1300 Mm
Number Of Rolls Cutting: 2 Rolls
Total Power: 22 KW
Product Description
CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging
High Speed Paper Sheeter Machine Arton Die Cut Machine
Product Overview

This high-speed precision paper sheeter excels in thin paper processing, featuring a "Top blade rotary, bottom blade fixed" flying shear design. The machine can be configured with additional Unwind Stands to handle multiple paper types simultaneously, making it ideal for processing various paper weights including 70 grams double-sided paper with 4 or 6 rolls.

Capable of handling 95% of paper market requirements with cutting speeds up to 400 cuts/minute, this energy-efficient machine delivers high precision and productivity. A single operator can manage multiple units simultaneously.


Key Specifications
Attribute Specification
Machine Weight 2500kg
Type of Cutting Top blade rotary, bottom blade fixed
Weight of Paper 60-500 GSM
Reel Diameter Max 1500mm (59")
Finished Width Max 1100mm (43")
Finished Sheet Length Min. 450 - Max. 1300 mm
Number of Rolls Cutting 2 rolls
Total Power 22 KW
Technical Parameters
Parameter Specification
Model CHM-1100
Cutting Accuracy ±0.5mm (L < 1000mm)
±0.1% (L ≥ 1000mm)
Max Speed of Cutting 300 cuts/min
Max Cutting Speed 300 m/min
Requirement of Air Pressure 0.8 MPa
Voltage AC 380V/220V x 50Hz
Standard Configuration
  • Max Reel diameter: 1500mm (59")
  • Max Reel width: 1100mm (43")
  • Min Reel width: 350mm (14")
  • Core size: 3", 6", 12" (Cone chuck)
  • HYD. Driving: 3.75kw
  • Clip arm movement (forward/back and up/down) driven by HYD
  • Pneumatic brake system
  • Dancing roll with related bracket

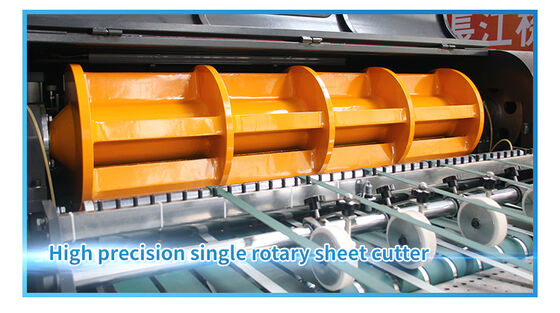

    High Precision Single Rotary Sheet Cutter
High Speed Precision Paper Sheeter Machine with 60-500 GSM Capacity and Max 1500mm Reel Diameter
Middle Slitting and Waste Edge Collecting System
High Speed Precision Paper Sheeter Machine with 60-500 GSM Capacity and Max 1500mm Reel Diameter

Static Eliminator System
  • Anti-static bar effectively eliminates static in sheets
Static eliminator system of CHM-1100 paper sheeter
Paper Conveyer System
High Speed Precision Paper Sheeter Machine with 60-500 GSM Capacity and Max 1500mm Reel Diameter
Auto Jogger System Specifications
Parameter Specification
Type HYD piling paper stand (auto-lowering)
Height of Paper Stack Max. 1200mm (47")
Size of Finished Paper Width: 1100mm (43")
Length: 1300mm (51")
Weight of Stacker 2500 kg
Jogger Dynamic type for front and sides with adjustable tailgate
Auto-Tension Control

Automatically adjusts tension based on paper roll diameter and weight parameters entered via touch screen.
High Speed Precision Paper Sheeter Machine with 60-500 GSM Capacity and Max 1500mm Reel Diameter

Auto-EPC (Edge Paper Control)

Precision sensing nozzle with high sensitivity for accurate web line detection.
High Speed Precision Paper Sheeter Machine with 60-500 GSM Capacity and Max 1500mm Reel Diameter

Electric De-curl Part

Reduces curvature in the core section of paper for improved flatness.

Control systems of CHM-1100 paper sheeter
Manufacturer Information

CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing beginning in China in 2004. After 21 years of development, we've grown into a professional manufacturer with three factories covering nearly 140,000 square meters in Guangdong, Shandong, and Jiangsu.

As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and after-sales service network. Our single knife sheeter technology has been cutting paper rolls since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide.

We welcome inquiries about our successful installations in various countries and can recommend the most suitable model based on your specific paper type, gram weight, width, and capacity requirements.
