Paper Sheet Roll To Cutting Machine More Unwind Unit
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200
Product Summary
CHM Series Precision High Speed Single Rotary Knife Paper Sheeter Machine CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior ...
Product Details
Highlight:
Manual automatic cross cutter
,Printing automatic cross cutter
,automatic paper sheet cutting machine 50Hz
Total Power:
22kW
Power Supply:
AC380V 50Hz
Dimensions:
6000mm X 2500mm X 1800mm
Maximum Cutting Width:
1100mm
Cutting Accuracy:
±0.5mm
Maximum Cutting Speed:
300m/min
Control System:
PLC Servo
Product Description

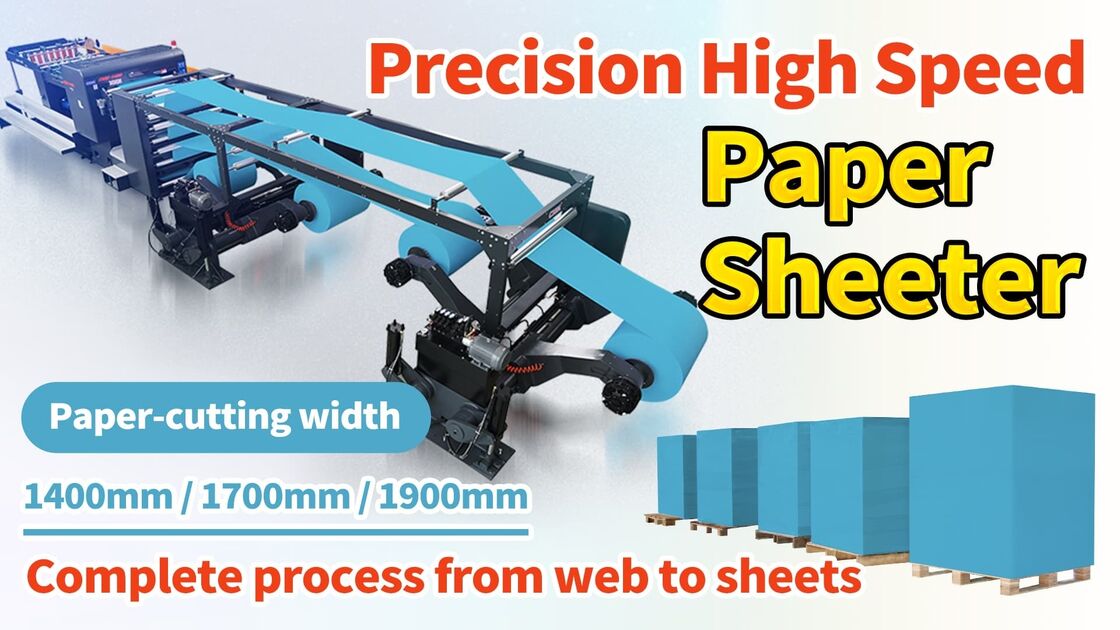

CHM Series Precision High Speed Single Rotary Knife Paper Sheeter Machine
CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior quality output for paper sizes ranging from 60 to 550 gsm.
Machine Configuration & Features
- Automatic tension system unwind stand with multi-point automatic braking
- Auto-EPC (Edge Paper Control) for precise alignment
- Deculler System (Anti-curvature Device) for flat sheet output
- Middle Slitting and Waste Edge Collecting System
- High precision single rotary sheet cutter with AC servo-driven control
- Advanced Paper Conveyor System
- Electrostatic eliminator System for static control
- Auto-Squareness Adjustment System
- Auto counting and Label inserting device
- Auto Jogger System for perfect stacking
Technical Specifications
| Specification | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Method | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Paper Weight Range | 60-550 GSM | 60-550 GSM | 60-550 GSM |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max Cutting Speed | 300 sheets/min | 300 sheets/min | 300 sheets/min |
| Max Cutting Meter Speed | 300m/min | 300m/min | 300m/min |
| Cutting Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max Scroll Diameter | 1800mm | 1800mm | 1800mm |
| Stacking Height | 1500mm (59") | 1500mm (59") | 1500mm (59") |
| Max Paper Width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (L×W×H) | 12518×3853×2230mm | 12518×4153×2230mm | 12518×4353×2230mm |
Machine Components & Operation
Complete Machine Overview
Paper Sheeter in Operation
Cutting Mechanism Detail
Hydraulic Shaft-less Unwind Station
Multi-disc Brake System
High Precision Rotary Cutter
Conveyor Unit
Auto Jogger System
Slitting & Waste Collection System
Company Profile
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories spanning nearly 140,000 square meters across Guangdong, Shandong, and Jiangsu. As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and comprehensive after-sales support.
Our equipment has been operational since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide. We work with major paper industry partners including Sun Paper, ND Paper, Double A, APP, and Chenming Paper.
Contact Information
Please provide your detailed requirements including paper type, gram weight, width, and capacity for customized machine recommendations.
Frequently Asked Questions
What quality service do you offer?
All machine parts are covered by a one-year warranty, with lifetime maintenance support. Outside warranty periods, we provide spare parts and services at preferential prices.
How do you guarantee quality?
We conduct pre-production samples before mass production and perform final inspections before shipment to ensure consistent quality standards.
Why choose CHM Machinery?
As the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, we offer expert sheet solutions backed by extensive R&D and over 110 patents.
What products do you offer?
We specialize in paper sheeter machines, paper cutters, copy paper and packaging machines, and cut-to-size paper and packaging equipment.
