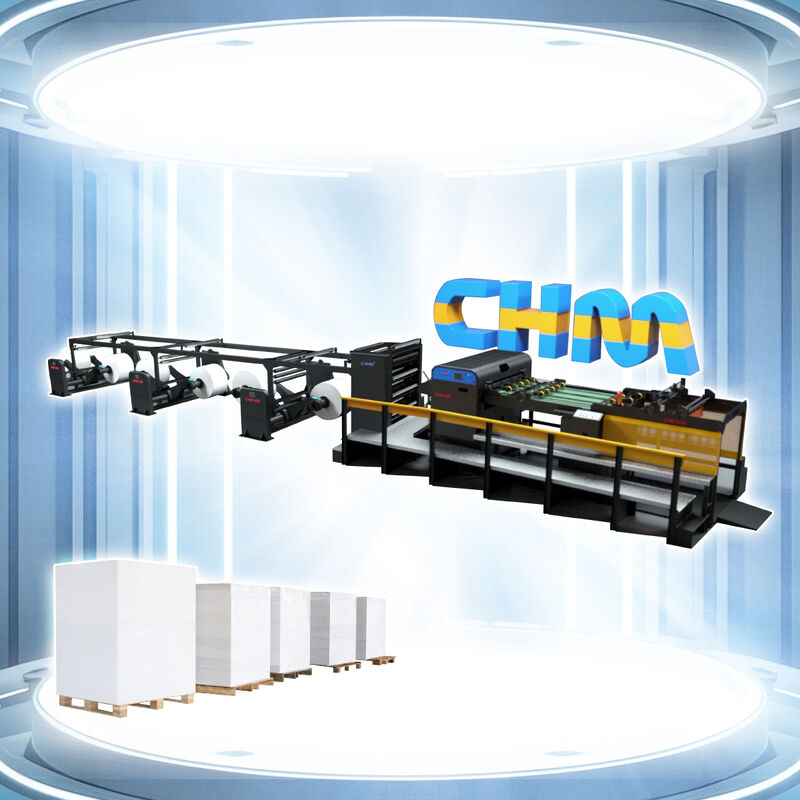

High Speed Paper Sheeter 300 Cuts/Min Chm Machine 60GSM - 500GSM
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1 SHE
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 SETS
Product Summary
CHM Roll To Sheet Cutting Machine High Speed 240/Min Cut 300g White Cardboard Paper AC Servo drive high precision single rotary sheet cutter paper machine. The strength of this machine is in thin paper. We can increase the number of Unwind Stand to adapt to the sheeter of more kinds of paper. For ...
Product Details
Highlight:
60GSM High Speed Paper Sheeter
,500GSM High Speed Paper Sheeter
,300 Cuts/Min chm machine
Product:
Paper Roll To Sheet Cutting Machine
Voltage:
380V
Power:
22kw 27kw
Max Speed:
300 Cuts/min
Product Description
CHM Roll To Sheet Cutting Machine High Speed 240/Min Cut 300g White Cardboard Paper
AC Servo drive high precision single rotary sheet cutter paper machine. The strength of this machine is in thin paper. We can increase the number of Unwind Stand to adapt to the sheeter of more kinds of paper. For example, 70 grams of double-sided paper, 4 or even 6 rolls are sheeter at the same time, which is very easy.The paper market 95% paper can be cut using this device, with high speed up to 400 cutting/min. Power saving, high efficiency, high precision, many sets paper sheeter machine can also be operated by a single person. We serve paper mills, paper distributors, and printing companies.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
| Total Power | 22 KW |
| Output | Dependent on material, paper weight, and operating process |
Standard Configuration
- Max Reel diameter: 1500mm (59")
- Max Reel width: 1100mm (43")
- Min Reel width: 350mm (14")
- Core size: 3", 6", 12" (Cone chuck)
- HYD. Driving: 3.75kw
- Clip arm move forward or back driven by HYD
- Clip arm up or down driven by HYD
- Pneumatic brake system
- Dancing roll with related bracket
Middle Slitting and Waste Edge Collecting System
Style
Adjustable slitting knife and exhaust tube for waste edge on both sides.
Top slitter
Adjustable up or down, slitting width can be adjusted manually.
Bottom slitter
The slitter are fixed, slitting width can be adjusted manually.
Windmill: driven motor
Type-Y collecting pipe for waste edge.
High Precision Single Rotary Sheet Cutter Features
- Top Tool Apron adopts advanced cutting way to decrease noise and load and prolong life of knife
- Bottom Tool Apron cast on time, then processing, with characteristic of stability
- Main driving roller: grainy surface, controlled by the air Pressure to grip the paper
We are manufacturers. CHM Machinery only produces paper sheeter machines and A4 production lines designed for 2 series. CHM made the first paper rolls to sheet cutting machine and A4 production line in China. CHM Machinery was established in 2004. After 21 years of hard work, it has developed into a professional paper sheeter machine manufacturer with three factories.
The three factories in Guangdong, Shandong and Jiangsu have a total area of nearly 140,000 square meters, becoming the world's second largest sheeting machine manufacturer with independent production capacity. We have the most professional after-sales team and research and development. As far as we know, the single knife sheeter in 2006 has been sheeter cutting paper rolls. Annual sales of more than 200 units, sold to more than 100 countries around the world.
We have many successful installation cases. We can check whether your country has our equipment. Please tell us your detailed requirements. According to your paper, gram weight, width, and capacity, we can make the most suitable paper roll sheet cutting model for you.
