Kraft Paper Sheet Making Machine 0.5mm Accuracy Rotary Sheet Cutting Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100/1400/1700/1900
Trading Properties
Minimum Order Quantity:
1 SHE
Price:
60000-120000 USD
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 SETS
Product Summary
CHM Automatic Kraft Paper Sheeting Machine CHM Automatic High Speed Paper Sheeter for Kraft Rolls to Sheets High-performance paper roll to sheets cutting machine designed for industrial-scale production with exceptional precision and efficiency. Key Features Specialized for thin paper processing ...
Product Details
Highlight:
Kraft paper sheet making machine
,0.5mm accuracy paper sheet making machine
,OEM rotary sheet cutting machine
Product:
Paper Roll To Sheet Cutting Machine
Voltage:
380V
Power:
22kw 27kw
Max Speed:
300 Cuts/min
Product Description
CHM Automatic Kraft Paper Sheeting Machine
CHM Automatic High Speed Paper Sheeter for Kraft Rolls to Sheets
High-performance paper roll to sheets cutting machine designed for industrial-scale production with exceptional precision and efficiency.
Key Features
- Specialized for thin paper processing with multi-roll capability
- Handles 95% of paper types in the market
- High-speed operation up to 400 cuts per minute
- Energy-efficient design with power-saving operation
- Precision cutting with ±0.5mm accuracy
- Single operator can manage multiple machines
- Ideal for paper mills, distributors, and printing operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
| Total Power | 22 KW |
Standard Configuration
- Max Reel diameter: 1500mm (59")
- Max Reel width: 1100mm (43")
- Min Reel width: 350mm (14")
- Core size: 3", 6", 12" (Cone chuck)
- HYD. Driving: 3.75kw
- Clip arm movement (forward/back and up/down) driven by HYD
- Pneumatic brake system
- Dancing roll with related bracket
Middle Slitting and Waste Edge Collecting System
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top slitter: Adjustable up/down with manual width adjustment
- Bottom slitter: Fixed position with manual width adjustment
- Windmill: Driven motor
- Type-Y collecting pipe for waste edge

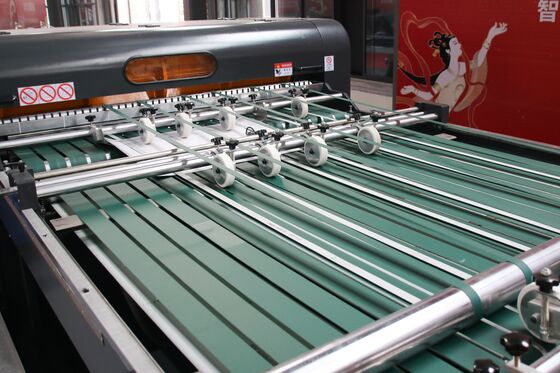

High Precision Single Rotary Sheet Cutter
- Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
- Bottom Tool Apron: Cast and processed for maximum stability
- Main driving roller: Grainy surface with air pressure control for optimal paper grip
About CHM Machinery
Established in 2004, CHM Machinery specializes in paper sheeter machines and A4 production lines. With three factories across Guangdong, Shandong, and Jiangsu totaling 140,000 square meters, we've grown to become the world's second largest sheeting machine manufacturer with independent production capacity.
Our annual production exceeds 200 units, serving customers in over 100 countries worldwide. We maintain a professional R&D team and comprehensive after-sales support network.
Contact Us
We can customize solutions based on your specific paper type, gram weight, width, and capacity requirements.
Website: www.chmmachinery.com
Email: chm017@szchm.com
WhatsApp/WeChat: 86-13215242947 (Ms. Ada)
Ms. Ada
Overseas sales
- Email: chm017@szchm.com
- Tel: +8613215242947
- WhatsApp: 8613215242947
-
WeChat:
+8613215242947
Related Products
-

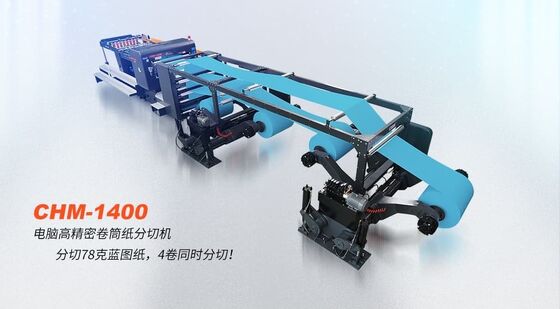

CHM Series Paper Sheeter Machine 1400mm - 1900mm High Speed Paper Sheeter
