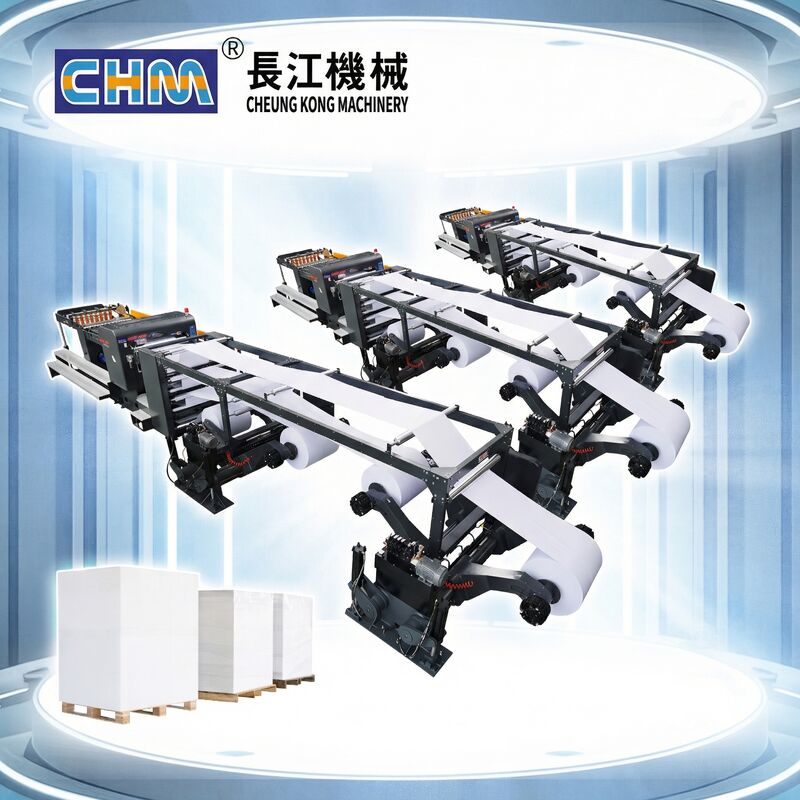

Paper Sheeter Machine Single Rotary Sheet Roll To Cutting Machine
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100
Trading Properties
Minimum Order Quantity:
1 set
Price:
50000-120000
Payment Terms:
,L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging Stretch Film, shipping mark, bubble wrap Product Overview CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts...
Product Details
Highlight:
60GSM Paper Sheeter Machine
,500GSM Paper Sheeter Machine
,1100mm rotary sheet cutting machine
Machine Weight:
2500kg
Type Of Cutting:
Top Blade Rotary, Bottom Blade Fixed
Weight Of Paper:
60-500 GSM
Reel Diameter:
Max 1500mm (59")
Finished Width:
Max 1100mm (43")
Finished Sheet Length:
Min. 450 - Max. 1300 Mm
Number Of Rolls Cutting:
2 Rolls
Total Power:
22 KW
Product Description
Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging
Stretch Film, shipping mark, bubble wrap
Product Overview
CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging
This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling 60-500 GSM paper, it's ideal for printing, packaging, and paper suppliers. The modular design allows for multiple roll processing simultaneously.
Key Specifications
| Attribute | Specification |
|---|---|
| Machine Weight | 2500kg |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Total Power | 22 KW |
Technical Details
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
Standard Configuration
- Max Reel diameter: 1500mm (59")
- Max Reel width: 1100mm (43")
- Min Reel width: 350mm (14")
- Core size: 3",6",12" (Cone chuck)
- HYD. Driving: 3.75kw
- Pneumatic brake system
- Dancing roll with related bracket
Advanced Systems
Middle Slitting and Waste Edge Collecting System
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top and bottom slitters with manual width adjustment
- Type-Y collecting pipe for waste edge
High Precision Single Rotary Sheet Cutter
- Advanced cutting method reduces noise and extends knife life
- Stable bottom tool apron with precision casting
- Grainy surface main driving roller with air pressure control
Auto-Squareness Adjustment System
British-style tool apron with automatic squareness adjustment via touch screen calibration.
Static Eliminator System
Anti-static bar effectively eliminates static in sheets.
Company Information
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories totaling 140,000 square meters. As the world's second largest sheeting machine manufacturer, we serve over 100 countries with annual sales exceeding 200 units.
Our facilities in Guangdong, Shandong, and Jiangsu support our position as an industry leader with a dedicated R&D team and comprehensive after-sales service.
Frequently Asked Questions
Quality & Service
- 1-year warranty on all parts with lifetime maintenance support
- Pre-production samples and final inspection before shipment
- Preferential pricing for spare parts after warranty period
Our Capabilities
- Specialized in paper sheeter machines and A4 production lines
- Over 110 patents in sheet machinery technology
- Global distribution network serving 100+ countries
