Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine

Basic Properties
Place of Origin: CHINA
Brand Name: CHM Machinery
Certification: CE
Model Number: 400/1700/1900（Standard Type）
Trading Properties
Minimum Order Quantity: 1 set
Price: 160000-240000
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 200 sets
Tags

chm machine

paper cutting system

paper reel cutter
Product Summary
Double Rotary Knife Paper Sheeter Machines High Precision Double Rotary Paper Sheeting Machine High Speed 300m/min Key Specifications Attribute Value Cutting Way Upper and lower rotary cutting mechanism Refence weight of cutting paper 200-1000GSM Cutting accuracy ±0.5mm Max cutting speed 300sheets...

Product Details

Highlight:

kraft paper roll cutting machine ink jet

,

ink jet paper roll to roll cutting machine

,

userfriendly kraft paper roll cutting machine
Cutting Way: Upper And Lower Rotary Cutting Mechanism
Refence Weight Of Cutting Paper: 200-1000GSM
Cutting Accuracy: ±0.5mm
Max Cutting Speed: 300sheets/min
Max.Cutting Meter Speed: 300m/min
Cutting Length Range: 450-1650mm
Max Scroll Diameter: 1800mm
Stacking Height Of Paperboard: 1300mm
Product Description
Double Rotary Knife Paper Sheeter Machines
High Precision Double Rotary Paper Sheeting Machine High Speed 300m/min
Key Specifications
Attribute Value
Cutting Way Upper and lower rotary cutting mechanism
Refence weight of cutting paper 200-1000GSM
Cutting accuracy ±0.5mm
Max cutting speed 300sheets/min
Max.cutting meter speed 300m/min
Cutting length range 450-1650mm
Max scroll diameter 1800mm
Stacking height Of paperboard 1300mm
Product Overview

Our High Precision Synchronize-fly Sheeter delivers fiber-less, clean cuts with exceptional dimensional accuracy. Ideal for processing board paper, art paper, kraft paper, and packing paper/board.

This AC Servo-driven double rotary sheet cutter incorporates advanced technology from Taiwan and Britain, featuring:

  • Fast, stable cutting with AC servo motor drive
  • German precision cutting knives for superior accuracy
  • User-friendly touch computer interface control
  • INK JET, automatic pallet change, and paper splicing systems
  • Full automation capability reducing labor by 70%

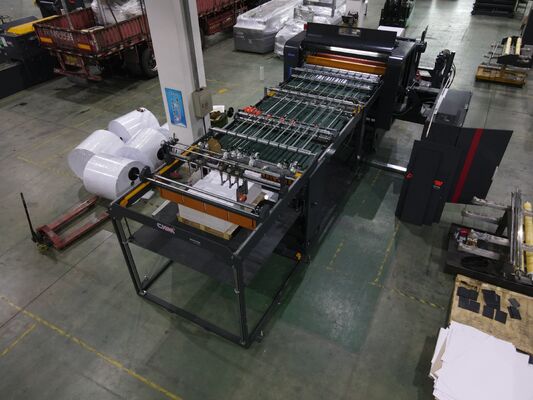

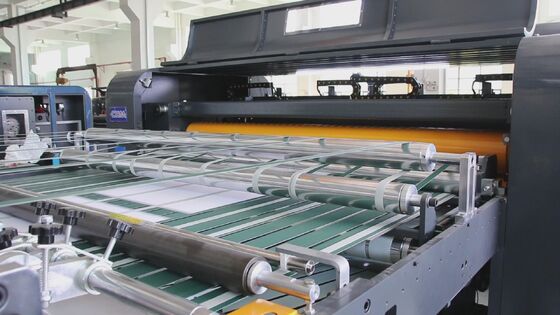

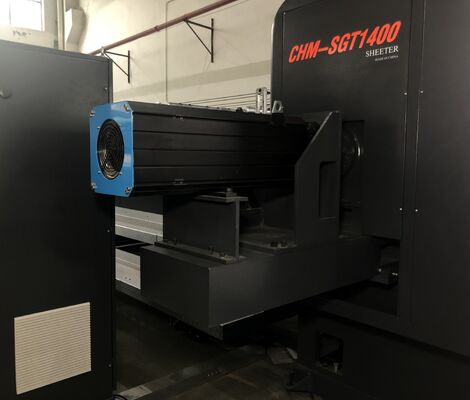

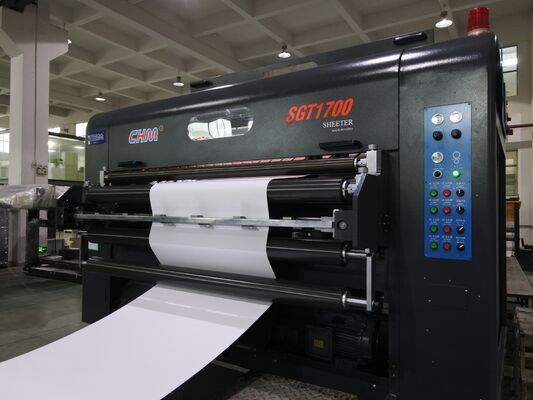

Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 0 Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 1 Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 2
Technical Specifications by Model
CHM Type CHM-SGT1400 CHM-SGT1700 CHM-SGT1900
Max.paper-cutting width 1400mm 1700mm 1900mm
Weight 15000kg 17000kg 18400kg
Dimension(LxWxH) 14453mm*4675mm*2350mm 14453mm*4975mm*2350mm 14453mm*5175mm*2350mm
Advanced Features
Hydraulic Shaft-less Unwind Station
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 3
Multi-disc Brake System
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 4
Auto Web Guide System
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 5
High Precision Cutting Unit
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 6

Top and bottom Tool Apron adopts advanced cutting technology to reduce noise and load while extending knife life.

Static Eliminator System
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 7

Anti-static bar effectively eliminates static in sheets for improved handling.

Auto Counting and Label Inserting
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 8

Precisely counts and inserts labels according to programmed requirements in HMI.

Company Profile

Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories across Guangdong, Shandong, and Jiangsu totaling 140,000 square meters - making us the world's second largest sheeting machine manufacturer.

With annual sales exceeding 200 units to over 100 countries, we offer:

  • The most professional after-sales team and R&D department
  • Over 110 patented technologies
  • Custom solutions tailored to your paper type, gram weight, width, and capacity requirements
Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 9 Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 10 Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 11
Frequently Asked Questions
What quality service do you offer?

All parts are guaranteed for one year with lifetime maintenance support. Outside warranty, we provide spare parts and services at preferential prices.

How do you guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

Why choose CHM Machinery?

We are the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, extensive patents, and the best R&D team.

Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 12 Kraft Paper Roll Cutting Machine Double Rotory sheeter machine INK JET Paper Roll To Roll Cutting Machine 13
