CHM A4 Paper Cutting And Packing Machine Paper Sheeter Packing 10 Tons/Day
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-A4-2
Trading Properties
Minimum Order Quantity:
1 set
Price:
165000-250000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
CHM Brand A4 Copy Paper High Capacity Production Line CHM-A4-2/A4B: A compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line featuring advanced Twin Rotary Knife Synchronize Sheeting technology with fully automatic ream and box wrapping capabilities. Key ...
Product Details
Highlight:
CHM A4 Paper Cutting And Packing Machine
,A4 Paper Cutting And Packing Machine
,Paper Sheeter Packing 10 Tons/Day
Paper Width:
Gross Width 850 Mm, Net Width 840mm
Cutting Numbers:
2 Cutting-A4 210mm (width)
Paper Roll's Diameter:
Max.Ф1400mm. Min.Ф600mm
Paper Core's Diameter:
3"(76.2mm)or According To The Clients' Demand
Packing Paper Grade:
High-grade Copy Paper; High-grade Office Paper; High Grade Free Wood Paper Etc.
Paper Weight:
60-100g/m²
Sheet Length:
297mm (specially Design For A4 Paper, The Cutting Length Is 297mm)
Ream Amount:
500 Sheets Max. Height: 45-55mm
Product Description

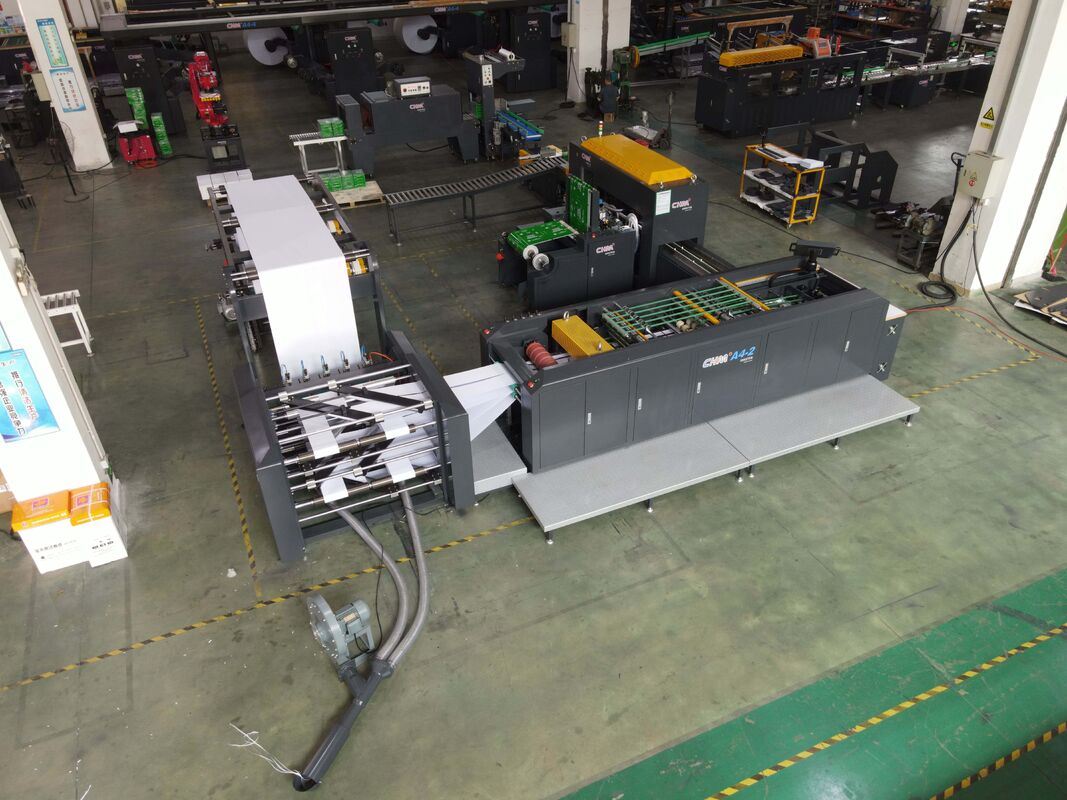

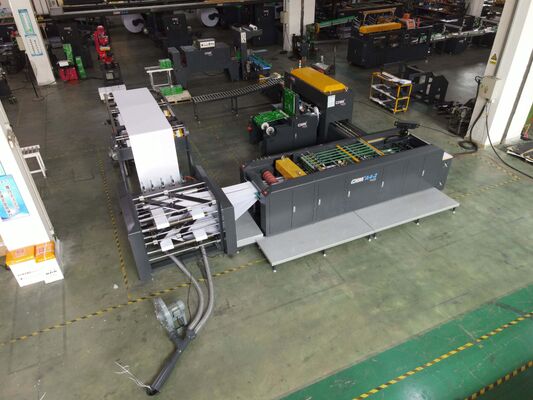

CHM Brand A4 Copy Paper High Capacity Production Line
CHM-A4-2/A4B: A compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line featuring advanced Twin Rotary Knife Synchronize Sheeting technology with fully automatic ream and box wrapping capabilities.
Key Specifications
| Paper Width | Gross width 850 mm, net width 840mm |
| Cutting Numbers | 2 cutting-A4 210mm (width) |
| Paper Roll's Diameter | Max.Ф1400mm. Min.Ф600mm |
| Paper Core's Diameter | 3"(76.2mm) or according to client requirements |
| Paper Grade | High-grade copy paper, office paper, Free Wood paper |
| Paper Weight | 60-100g/m² |
| Sheet Length | 297mm (specially designed for A4 paper) |
| Ream Amount | 500 sheets Max. Height: 45-55mm |
Technical Parameters
| Parameter | Details |
|---|---|
| Model | CHM-A4-2 |
| Production Speed | Max 0-250 m/min (depends on paper quality) |
| Max Cutting Numbers | 841 cuts/min |
| Output Capacity | Max 13 reams/min |
| Cutting Accuracy | ±0.2 mm |
| Power Supply | 3*380 V / 50 Hz |
| Power Consumption | 23 KW |
| Air Consumption | 200 NL/min at 6 bar |
| Safety Standard | Designed according to China's safety standards |

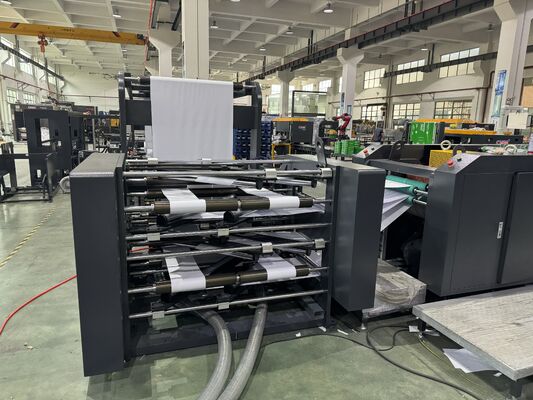

Unwind Stand (1Set=2Rolls)
- Each machine table accommodates 2 sets of shaftless paper racks
- Max paper roll diameter: Ф1400mm
- Max paper roll width: 850mm
- Constructed with durable steel material
- Pneumatic brake control system
- Manual oil pressure adjustment for clip arm
- 3" (76.2mm) air expansion shaft chuck

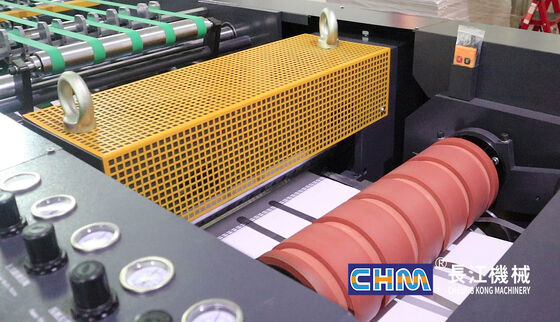

High Precision Cutting System
- Rotary upper and lower knives for precise cutting
- Anti-curve device with square bar and steel wheel for paper alignment
- 5 sets of slitting knives with air pressure and spring mechanisms
- Paper feeding wheels: upper Ф200*550mm (rubber), lower Ф400*550mm (anti-glide)
- High precision bearing and belt drive system
Transporting System
- Level and overlapping transport device
- High-speed transporting belt with press wheel
- Automatic tension and close system
- Integrated static removal system with negative ion generator

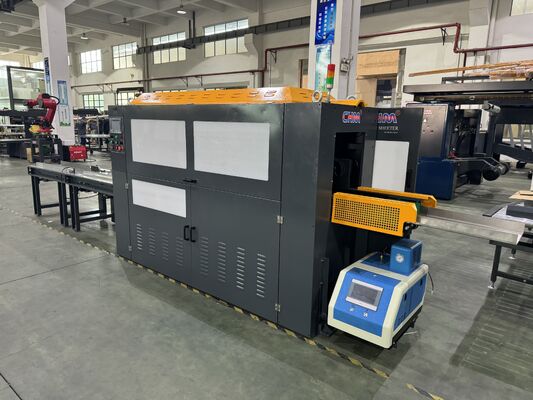

CHM-A4B Wrapping Machine
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Power Supply | 3*380 V / 50 Hz |
| Power Consumption | 18 KW |
| Air Consumption | 300 NL/min at 6 bar |
Control System
The entire machine is controlled by PLC with functions including speed control, paper count, ream output tracking, fault alarm, and automatic stop with fault code display on the panel screen.
About CHM Machinery
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories in Guangdong, Shandong, and Jiangsu covering 140,000 square meters. As the world's second largest sheeting machine manufacturer with independent production capacity, we have:
- Professional R&D and after-sales teams
- Annual sales exceeding 200 units to over 100 countries
- 15+ years of engineering experience
- Successful installations worldwide including major paper mills
Frequently Asked Questions
What advantages does your A4 production line offer?
Our production line features proprietary R&D capabilities and high-speed cutting technology, capable of 24/7 operation with maximum capacity of 1600 tons. We hold 70% market share in this sector.
Do you have installation references?
We have numerous successful installations worldwide including ND Paper (Pakistan), Double A, Sun Paper, and other major industry players. We can provide video documentation of machines operating in your region.
What quality assurance measures do you implement?
We conduct pre-production samples before mass production and final inspections before shipment. All components are guaranteed for one year with lifetime maintenance support.
