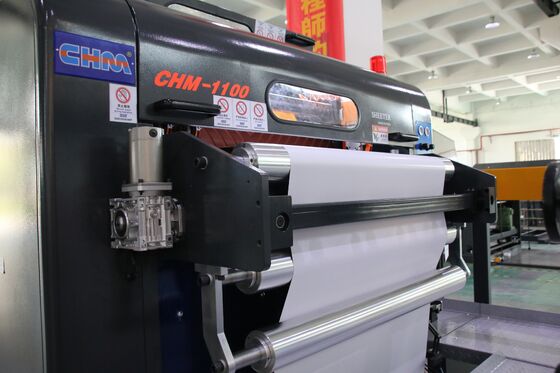

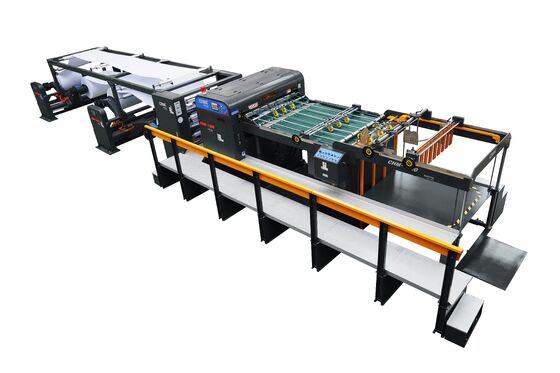

High Speed Paper Sheeter Paper Sheeting Machine
Basic Properties
Place of Origin:
China
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-1100
Trading Properties
Minimum Order Quantity:
1 set
Price:
50000-120000
Payment Terms:
,L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging CHM-1100 High Speed Paper Sheeter Machine for Printing Packaging Product Overview CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging This servo-driven machine excels in processing thin papers with high ...
Product Details
Highlight:
2500kg high speed paper sheeter
,22KW high speed paper sheeter
,paper sheeting machine 1100mm
Machine Weight:
2500kg
Type Of Cutting:
Top Blade Rotary, Bottom Blade Fixed
Weight Of Paper:
60-500 GSM
Reel Diameter:
Max 1500mm (59")
Finished Width:
Max 1100mm (43")
Finished Sheet Length:
Min. 450 - Max. 1300 Mm
Number Of Rolls Cutting:
2 Rolls
Total Power:
22 KW
Product Description
Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging
CHM-1100 High Speed Paper Sheeter Machine for Printing Packaging
Product Overview
CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging
This servo-driven machine excels in processing thin papers with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling multiple rolls simultaneously, it's ideal for paper mills, distributors, and printing/packaging operations.
Key Specifications
| Attribute | Value |
|---|---|
| Machine Weight | 2500kg |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Total Power | 22 KW |
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
Standard Configuration
- Max Reel diameter: 1500mm (59")
- Max Reel width: 1100mm (43")
- Min Reel width: 350mm (14")
- Core size: 3",6",12" (Cone chuck)
- HYD. Driving: 3.75kw
- Pneumatic brake system
- Dancing roll with related bracket
Advanced Systems
Middle Slitting and Waste Edge Collecting
- Adjustable slitting knife and exhaust tube for waste edge
- Top and bottom slitters with manual width adjustment
- Type-Y collecting pipe for waste edge

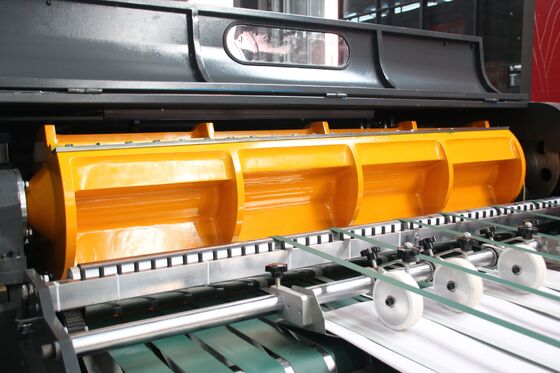

High Precision Rotary Sheet Cutter
- Advanced cutting mechanism reduces noise and extends blade life
- Stable bottom tool apron cast and processed for precision
- Grainy surface main driving roller with air pressure control
Auto-Squareness Adjustment
British-style tool apron with automatic squareness adjustment via touch screen calibration.
Static Eliminator System
Anti-static bar effectively eliminates static in sheets.
Paper Conveyor System
- Multi-stage horizontal conveying for efficient counting and piling
- High efficiency dust collection equipment
Auto Counting & Label Inserting
- Precise counting with HMI input control
- Automatic label insertion and defective product refill
Auto Jogger System
| Parameter | Specification |
|---|---|
| Type | HYD piling paper stand (auto-lowering) |
| Height of Paper Stack | Max. 1200mm (47") |
| Size of Finished Paper | Width: 1100mm (43") Length: 1300mm (51") |
Quality Assurance & Support
- 1-year warranty on all parts
- Lifetime maintenance support
- Pre-production samples and final inspection before shipment
Company Information
CHM Machinery is a leading Hong Kong brand sheet machinery producer with a 140,000 square meter facility and over 110 patents. Our solutions serve paper mills, distributors, and printing/packaging operations worldwide.
