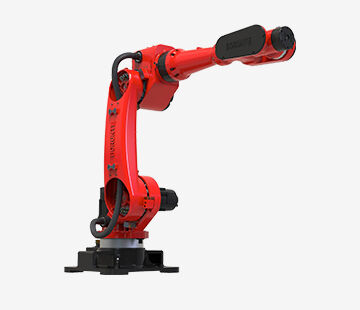

6 Axis Industrial Robot 2550mm Arm 50KG Load Industrial Robot Arm
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-Stacking Machine
Trading Properties
Minimum Order Quantity:
1 set
Price:
35000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
CHM-Stacking Machine - Six Axis Robot for Monotonous Operations BRTIRUS2550A 6-Axis Industrial Robot 2550mm Arm 50KG Load Product Specifications Attribute Value Arm Length 2550mm Loading Capacity 50KG Repeatability ±0.1mm Power Source 16.7KVA Type Automatic Protection Grade IP54 Product Description ...
Product Details
Highlight:
6 axis industrial robot 50kg load
,2550mm industrial robot arm
,industrial robot with warranty
Arm Length:
2550mm
Loading Ability:
50KG
Repeatability:
±0.1mm
Power Source:
16.7KVA
Type:
Automatic
Protection Grade:
IP54
Product Description
CHM-Stacking Machine - Six Axis Robot for Monotonous Operations
BRTIRUS2550A 6-Axis Industrial Robot 2550mm Arm 50KG Load
Product Specifications
| Attribute | Value |
|---|---|
| Arm Length | 2550mm |
| Loading Capacity | 50KG |
| Repeatability | ±0.1mm |
| Power Source | 16.7KVA |
| Type | Automatic |
| Protection Grade | IP54 |
Product Description
The BRTIRUS2550A six-axis robot is specifically engineered for monotonous, frequent, and repetitive long-term operations, including tasks in hazardous or harsh environments. With a maximum arm length of 2550mm and 50KG load capacity, this versatile robot offers six degrees of freedom, making it ideal for loading/unloading, assembly, molding, and stacking applications.
- IP54 protection rating ensures resistance to water and dust
- High precision with ±0.1mm repeat positioning accuracy
Technical Specifications
| Item | Arm-J1 | Arm-J2 | Arm-J3 | Wrist-J4 | Wrist-J5 | Wrist-J6 |
|---|---|---|---|---|---|---|
| Arm Length (mm) | 569mm | 850mm | 1263mm | 178.5mm | - | - |
| Range (°) | ±160° | ±70° | -75°/+115° | ±180° | ±125° | ±360° |
| Max. Speed (°/S) | 84°/S | 52°/S | 52°/S | 245°/S | 223°/S | 223°/S |
| Arm Length | Loading Capacity | Repeatability | Power Source | Net Weight |
|---|---|---|---|---|
| 2550mm | 50KG | ±0.1mm | 16.7KVA | About 725KG |
Note: Product images are for reference only. Color and appearance may vary without prior notice.
