AC Drive Paper A4 Cutting And Packing Machine Box Wrapping Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-A4DB
Trading Properties
Minimum Order Quantity:
1 set
Price:
100000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
CHM-A4DB A4 Paper Box Wrapping Machine with AC Servo Drive Product Overview This advanced packaging machine integrates electrical automation with PLC control systems and mechanical automation. It performs complete paper box wrapping operations including paper conveying, ream paper collection, ...
Product Details
Highlight:
AC Drive Paper a4 cutting and packing machine
,430mm Paper a4 cutting and packing machine
,A4 paper sheeter machine with warranty
Paper Width:
Gross Width:310mm; Net Width :297mm
Box Machine Specification:
5 Packages/box; 8 Packages/box; 10 Packages/box
Carton Specification (Reference):
430mm*315mm*300mm(10 Packages）/315*220*300mm(5 Packages)
Packing Sheets Grade:
High-grade Copy Paper, High-grade Office Paper
Design Speed:
Max 5-10 Boxes/min
Operation Speed:
Max 5-7 Boxes/min
Packing Condition:
Be Qualified A4 Paper(297mm*210mm), The Ream Paper Height 45mm-55mm; Carton Specifications Qualified.
Driving:
AC Servo Driving
Product Description
CHM-A4DB A4 Paper Box Wrapping Machine with AC Servo Drive
Product Overview
This advanced packaging machine integrates electrical automation with PLC control systems and mechanical automation. It performs complete paper box wrapping operations including paper conveying, ream paper collection, counting, automatic loading, feeding, cover placement, and belt application to transform roll paper into packaged A4 paper boxes.
Key Features
- Fully automated continuous production line
- Precision AC servo driving system
- PLC control with intuitive panel interface
- Multiple packaging configurations (5/8/10 packages per box)
- Built-in fault detection and alarm system
- Speed control and automatic stop functions

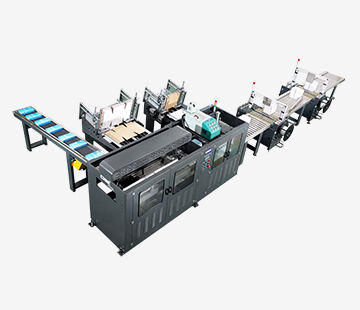

Complete A4 paper box wrapping machine
Technical Specifications
| Parameter | Specification |
|---|---|
| Paper Width | Gross width: 310mm; Net width: 297mm |
| Box Configuration | 5/8/10 packages per box |
| Carton Dimensions | 430×315×300mm (10pk) / 315×220×300mm (5pk) |
| Paper Grade | High-grade copy/office paper |
| Design Speed | 5-10 boxes/minute |
| Operating Speed | 5-7 boxes/minute |
| Power Supply | 3×380V/50Hz, 18kW |
| Control System | PLC with touch panel interface |
Operation Details
The machine requires qualified A4 paper (297×210mm) with ream height between 45-55mm and properly sized cartons. It features automatic speed control, paper counting, output management, and displays fault codes on the control panel for quick troubleshooting.
Production Line Images

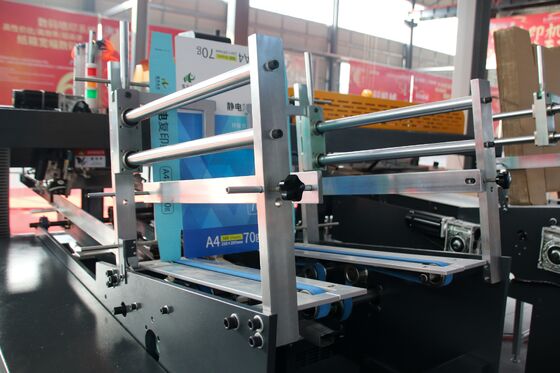

Machine side view with servo drive components
Operator interface and control panel
Finished Product Examples
Professional A4 paper box packaging

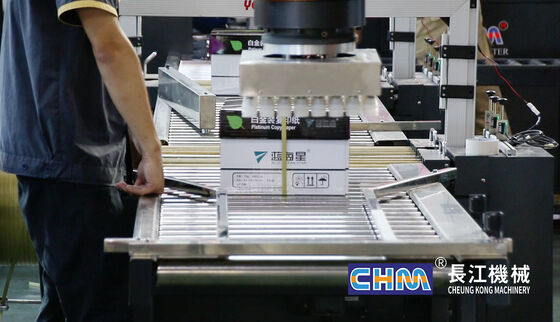

Packaging process demonstration

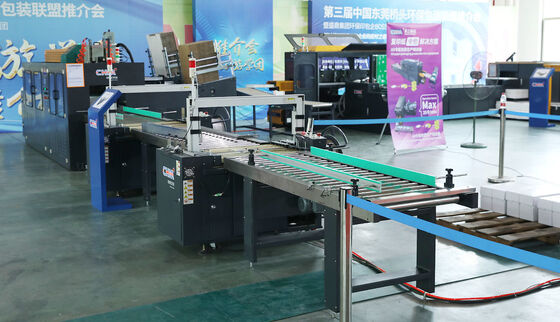

Full production line operation
Finished product stack ready for distribution
