A5 A4 Paper Cutting And Packing Machine 50 Reams/Min Paper Packaging Line
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-A5B
Trading Properties
Minimum Order Quantity:
1 set
Price:
90000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
CHM-A5B A5 Paper Packaging Line 60 Reams/Min PLC Control Key Specifications Attribute Value Paper Width Gross width: 220mm; Net width: 210mm Ream Packing Height Max 55mm; Min 45mm Packing Roll Diameter Max 1000mm; Min 200mm Packing Roll Width 440mm Packing Sheets Weight 70-100g/m² Packing Sheets ...
Product Details
Highlight:
A5 A4 Paper Cutting And Packing Machine
,ODM A4 Paper Cutting And Packing Machine
,60 Reams/Min Paper Packaging Line
Paper Width:
Gross Width:220mm ;net Width :210mm
Ream Packing High:
Max 55mm ; Min 45mm
Packing Roll Dia.:
Max.1000mm ; Min.200mm
Packing Roll Width:
440mm
Packing Sheets Weight:
70-100g/m²
Packing Sheets Grade:
High-grade Copy Paper, High-grade Office Paper, High-grade Offset Paper Etc.
Design Speed:
Max 60 Reams/min
Operation Speed:
Max 46 Reams/min
Product Description
CHM-A5B A5 Paper Packaging Line 60 Reams/Min PLC Control
Key Specifications
| Attribute | Value |
|---|---|
| Paper Width | Gross width: 220mm; Net width: 210mm |
| Ream Packing Height | Max 55mm; Min 45mm |
| Packing Roll Diameter | Max 1000mm; Min 200mm |
| Packing Roll Width | 440mm |
| Packing Sheets Weight | 70-100g/m² |
| Packing Sheets Grade | High-grade copy paper, office paper, offset paper |
| Design Speed | Max 60 reams/min |
| Operation Speed | Max 46 reams/min |
Product Description

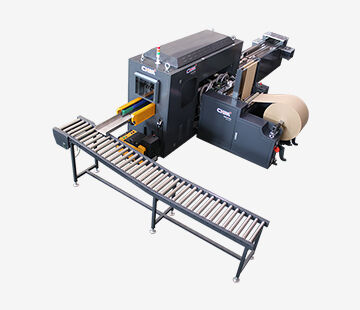

The CHM-A5B A5 paper packaging production line is a fully integrated packaging system combining electrical automation, PLC control, and mechanical automation. This complete production line enables continuous operation through preparation, opening, memory transmission, packaging, and discharging stages.
Technical Parameters
| Model | CHM-A5B |
| Packing Condition | No speed variations, no breaks, cuts all paper at once with qualified packing paper |
| Driving System | AC Servo Driving |
| Main Power Supply | 3*380 V / 50 Hz (or as required) |
| Control Voltage | 220 V AC / 24 V DC (or as required) |
| Power | 18 kW |
| Compressed Air Consumption | 250 NL/min |
| Air Compressor | 6 bar |
The entire machine is PLC-controlled with functions including: speed control, paper counting, ream output monitoring, fault alarm system, and automatic stop with fault code display on the panel screen.

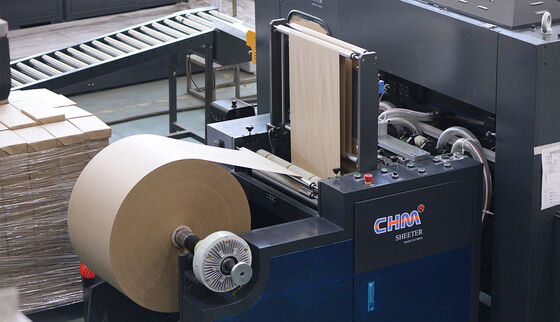

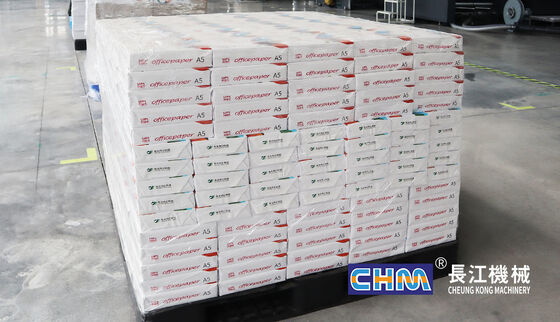

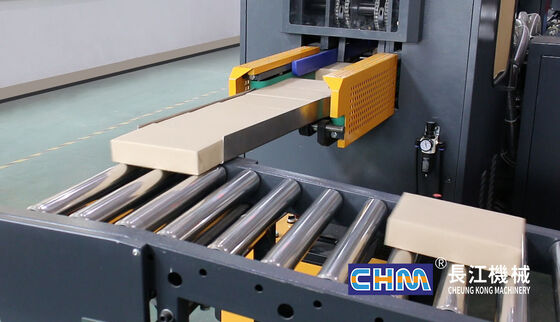

Product Gallery
Manufacturer Information
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing facilities established in 2004. After 21 years of development, we operate three factories in Guangdong, Shandong, and Jiangsu covering nearly 140,000 square meters, making us the world's second largest sheeting machine manufacturer with independent production capacity.
Our professional R&D and after-sales teams support annual sales of over 200 units to more than 100 countries worldwide. Since introducing our single knife sheeter in 2006, we've accumulated extensive experience in paper roll cutting technology.
We can verify if your country has existing installations and will recommend the most suitable model based on your paper specifications, gram weight, width, and capacity requirements. Please contact us with your detailed inquiries.
