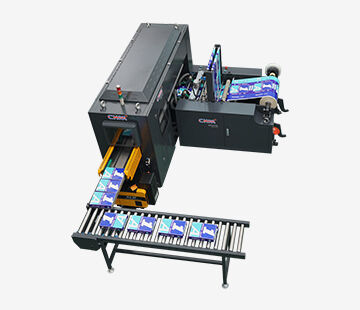

A4 Paper Packaging Line 35 Reams/Min A4 Reamsr Packaging Machine
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-A4B
Trading Properties
Minimum Order Quantity:
1 set
Price:
90000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
CHM-A4B A4 Paper Packaging Production Line Equipment CHM-A4B A4 Paper Packaging Line 35 Reams/Min PLC Control Product Overview The CHM-A4B is a fully automated packaging production line integrating electrical automation, PLC control systems, and mechanical automation. This complete system handles ...
Product Details
Highlight:
310mm A4 paper packaging line
,297mm paper sheeter machine 35 reams/min
,A4 paper packaging machine
Paper Width:
Gross Width:310mm; Net Width :297mm
Ream Packing High:
Max 55mm ; Min 45mm
Packing Roll Dia:
Max.1000mm ; Min.200mm
Packing Roll Width:
560mm
Packing Sheets Weight:
70-100g/m²
Packing Sheets Grade:
High-grade Copy Paper, High-grade Office Paper, High-grade Offset Paper Etc.
Design Speed:
Max 40 Reams/min
Operation Speed:
Max 35 Reams/min
Product Description
CHM-A4B A4 Paper Packaging Production Line Equipment
CHM-A4B A4 Paper Packaging Line 35 Reams/Min PLC Control
Product Overview
The CHM-A4B is a fully automated packaging production line integrating electrical automation, PLC control systems, and mechanical automation. This complete system handles continuous production from preparation through to packaging and discharging.
Key Specifications
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max 55 mm; Min 45 mm |
| Packing Roll Diameter | Max 1000 mm; Min 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Packing Sheets Grade | High-grade copy paper, office paper, offset paper, etc. |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Packing Condition | No speed variations, no breaks, cuts all paper at once |
| Driving System | AC Servo Precision Control |
| Power Supply | 3*380 V / 50 Hz (or as required) |
| Control Voltage | 220 V AC / 24 V DC (or as required) |
| Power Consumption | 18 kW |
| Air Consumption | 300 NL/min at 6 bar |
Control System Features
- PLC-controlled operation
- Precision speed control
- Automatic paper counting
- Ream output monitoring
- Fault alarm system with diagnostic codes
- Automatic stop function for error conditions
