A4 Paper Cutting And Packing Machine A4 Copy Sheeter Paper Machine

Basic Properties
Place of Origin: CHINA
Brand Name: CHM Machinery
Certification: CE
Model Number: CHM-A5-6（pocket）
Trading Properties
Minimum Order Quantity: 1 set
Price: 250000-320000
Payment Terms: D/A,L/C,D/P,T/T
Supply Ability: 200 sets
Tags

Paper Packaging Line

paper roll sheeter

A4 Paper Making Machine
Product Summary
CHM-A5-6 A5 Paper Sheeting and Packaging Production Line Product Overview CHM brand A5 copy paper high-capacity production line featuring advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping with production speeds up to 46 reams/min. Key ...

Product Details

Highlight:

891mm A4 Paper Cutting And Packing Machine

,

A4 Paper Cutting And Packing Machine 1500mm

,

Steel sheeter paper machine
Unwind Stand: (2 Sets= 4Rolls) (include 3 Sets Of Railway And Trolley)
Machine Type: Each Machine Table Can Take 2 Sets Of Shaftless Paper Rack
Diameter Of The Paper Roll: Max. Ф1500mm
Width Of The Paper Roll: Max. Ф891mm
Paper Rack’S Material: Steel
Clutch Device: Pneumatic Braker And Control
Clip Arm’S Adjustment: Manual Adjust By Oil Pressure
Paper Core Demanding: 3”(76.2mm)or 6”(152.4mm) Or According To The Client’s Need
Product Description
CHM-A5-6 A5 Paper Sheeting and Packaging Production Line
Product Overview

CHM brand A5 copy paper high-capacity production line featuring advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping with production speeds up to 46 reams/min.

Key Specifications
Attribute Value
Unwind Stand 2 Sets (4 Rolls) including 3 sets of railway and trolley
Machine Type Each machine table can take 2 sets of shaftless paper racks
Diameter of the paper roll Max. Ф1500mm
Width of the paper roll Max. Ф891mm
Paper rack's material Steel
Technical Parameters
Parameter Details
CHM Type CHM-A5-6
Paper Width Gross width: 900 mm, Net width: 891 mm
Cutting Numbers 6 cutting-A5 (148.5 mm width)
Production Speed Max 0-200 m/min (depends on paper quality)
Cutting Accuracy ±0.2 mm
Power 34 kW

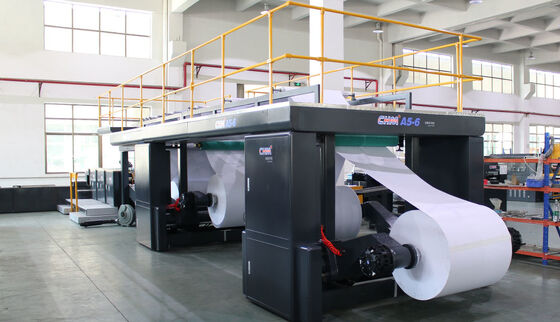

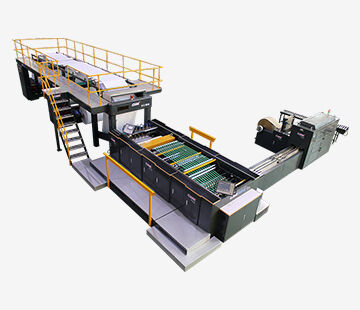

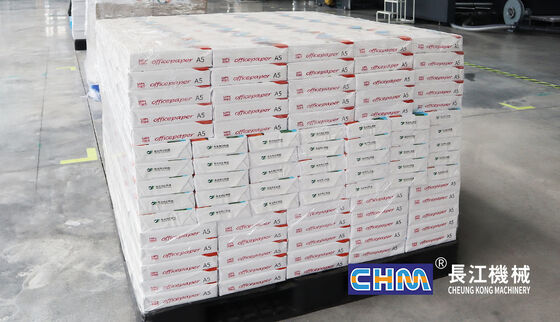

CHM-A5-6 production line overview Close-up of paper sheeting mechanism A5 paper packaging output
Core Systems
Automatic Tension Control System

When paper passes through the inductor, it automatically feedbacks to the PLC control system to adjust brake load and maintain optimal paper tension.

Automatic tension control system diagram
High Precision Cutting Knife System
  • Upper and lower rotary knives ensure precise cutting
  • Anti-curve device with square bar and steel wheel for flat paper alignment
  • 7 sets of slitting knives with SKH material construction
Cutting knife system components
Transporting System
  • Level and overlapping transport device
  • High-speed transporting belt with press wheel
  • Static removal system with negative ion generator
Paper transporting system
Manufacturer Background

CHM Machinery, established in 2004, has developed into a professional paper sheeter machine manufacturer with three factories covering 140,000 square meters. We have sold over 200 units globally with customers in more than 100 countries.

Frequently Asked Questions
What advantages do your A4 production line have?

We have R&D capabilities and high-speed cutting technology allowing 24/7 operation with maximum production capacity of 1600 tons. Our market share is 70%.

Why choose you instead of other suppliers?

CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years experience, we have customers using our equipment for more than a decade.

CHM Machinery factory overview Production line installation Quality inspection process
