Fully Auto A4 Paper Cutting And Packing Machine Chm Machinery
Basic Properties
Place of Origin:
CHINA
Brand Name:
CHM Machinery
Certification:
CE
Model Number:
CHM-A4-4/5
Trading Properties
Minimum Order Quantity:
1 set
Price:
250000-320000
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
200 sets
Product Summary
CHM-A4-4/5 A4 Cut Size Sheeting And Packaging Production Line CHM-A4-4/5 A4 Paper Making Machine with 280m/min Speed Product Specifications Attribute Value Production speed Max 280m/min Cutting accuracy ±0.2mm Power 32kw+18kw+18kw Machine Type 2 rolls loaded unwind stand *2sets plus 1 roll loaded ...
Product Details
Highlight:
280m/min A4 Paper Cutting And Packing Machine
,A4 Paper Cutting And Packing Machine 32kw
,Pneumatic chm machinery
Production Speed:
Max280m/min
Cutting Accuracy:
±0.2mm
Power:
32kw+18kw+18kw
Machine Type:
2 Rolls Loaded Unwind Stand *2sets Plus 1 Roll Loaded Unwind Stand *1 Set (shaftless And Hydraulic Floor Pickup System)
Diameter Of The Paper Roll:
Max.Ф1500mm
Paper Rack’S Material:
Steel
Clutch Device:
Pneumatic Braker And Control
Clip Arm’S Adjustment:
Manual Adjust By Oil Pressure
Product Description

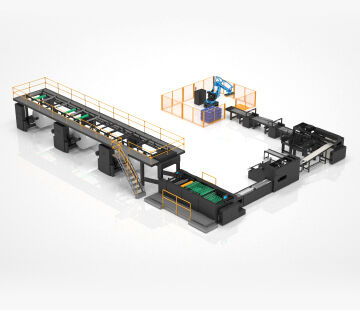

CHM-A4-4/5 A4 Cut Size Sheeting And Packaging Production Line
CHM-A4-4/5 A4 Paper Making Machine with 280m/min Speed
Product Specifications
| Attribute | Value |
|---|---|
| Production speed | Max 280m/min |
| Cutting accuracy | ±0.2mm |
| Power | 32kw+18kw+18kw |
| Machine Type | 2 rolls loaded unwind stand *2sets plus 1 roll loaded unwind stand *1 set (shaftless and hydraulic floor pickup system) |
| Diameter of the paper roll | Max.Ф1500mm |
| Paper rack's material | Steel |
| Clutch device | Pneumatic braker and control |
| Clip arm's adjustment | Manual adjust by oil pressure |
Product Overview
The CHM-A4-4/5 A4 cut size sheeting and packaging production line incorporates advanced Twin Rotary Knife Synchronize Sheeting technologies, enabling fully automatic ream and box wrapping. As a high-capacity (10/16/23/30 reams/min) A4 copy paper production line, it represents 19 years of CHM Machinery's research and development since introducing China's first high double rotary A4 copy production line in 2006.
Technical Parameters
| Parameter | CHM-A4-4 | CHM-A4-5 |
|---|---|---|
| Paper Width | 845-850 mm | 1055-1060 mm |
| Production Speed | Max 280 m/min | Max 280 m/min |
| Cutting Accuracy | ±0.2 mm | ±0.2 mm |
| Number of Paper Rolls | 4 Rolls | 5 Rolls |
| Pockets | 4 Pockets | 5 Pockets |
| Output of the Ream | Max 30 Reams/min | Max 37 Reams/min |
| Power | 32 kW + 18 kW + 18 kW | 34 kW + 18 kW + 18 kW |
| Dimension (L x W x H) | 17681 × 4140 × 3190 mm | 20114 × 4355 × 3190 mm |
Key Systems
Automatic Tension Control System
The system automatically adjusts paper tension through PLC control when the paper passes through the inductor, increasing brake load as needed to maintain optimal tension.
High Precision Cutting Knife System
CHM-A4-4 Features:
- Rotary upper and lower knives ensure ±0.2mm cutting accuracy
- Anti-curve device with square bar and steel wheel maintains paper flatness
- 5 sets of SKH-made slitting knives with air pressure/spring mechanism
- Upper wheel: Ф200×1100mm (rubber covered)
- Lower wheel: Ф400×1100mm (anti-glide)
CHM-A4-5 Features:
- 6 sets of precision slitting knives
- Upper wheel: Ф200×1150mm (rubber covered)
- Lower wheel: Ф400×1210mm (anti-glide)
- High precision bearing and belt drive system
Transporting System
Features level and overlapping transport with high-speed belts and press wheels, including static removal system with negative ion generator.
Paper Collecting System
Automated paper stack management with jogging device and clap paper tidy system, controlled by air vat for precise sheet alignment.
CHM-A4B Wrapping Machine
| Specification | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max: 55 mm; Min: 45 mm |
| Packing Roll Diameter | Max: 1000 mm; Min: 200 mm |
| Design Speed | Max: 50 reams/min |
| Operation Speed | Max: 35 reams/min |
| Power | 18 KW |
Control System
PLC-controlled operation with functions for speed control, paper counting, output monitoring, fault alarm with automatic stop, and diagnostic code display.
Company Profile
Established in 2004, CHM Machinery operates three factories across Guangdong, Shandong, and Jiangsu with 140,000m² total area. As the world's second largest sheeting machine manufacturer, we've sold over 200 units to 100+ countries with professional R&D and after-sales teams.
Frequently Asked Questions
What advantages do your A4 production lines have?
Our production lines feature proprietary R&D capabilities and high-speed cutting technology, achieving 24/7 operation with 1600-ton maximum capacity and 70% market share.
Do you have installation references?
Our equipment serves major paper mills including ND Paper, Double A, and Sun Paper. We can provide operational videos from your region.
How do you ensure quality?
We conduct pre-production samples and final inspections before shipment, with one-year parts warranty and lifetime maintenance support.
