roll paper sheeter
"
Alta velocidad de 300 cortes/min AC Servo-Driven Precisión de corte ± 0,5 mm Máquina de hoja de papel para rollos de papel Jumbo
La laminadora de papel de alta velocidad CHM-1100 maneja papel de 60-500 GSM con un diámetro máximo de carrete de 1500 mm. Cuenta con servoaccionamiento de CA, precisión de corte de ±0,5 mm, velocidad de 300 cortes/min y maneja 2 rollos simultáneamente. Ideal para industrias de impresión, embalaje y papel.
Línea de producción de máquina cizalladora y empaquetadora de papel CHM Machine A3A4
CHM-A4 Fully Automatic Paper Sheeting and Packaging Production Line The CHM-A4 high-speed production line adopts the most advanced Twin Rotary Knife synchronize sheeting technologies delivers exceptional output of 20-35 reams per minute, capable of processing 20-30 tonnes in 8 hours. This fully automated system integrates electrical automation, PLC control, and mechanical automation for continuous production from ream collection to final discharge.capable of fully automatic
CHM A4A3 copiadora de hojas de papel y máquina de embalaje de alta producción 30 toneladas por día con velocidad máxima de 280 m / min
CHM-A4 Copy Paper Sheeting and Packaging Machine High-speed A4 paper production line with maximum output of 600 tons per month and speeds up to 280m/min Product Overview The CHM-A4-4/5 high-speed production line delivers 20/25/35 reams per minute, achieving 20/25/30 tonnes in 8 hours. As the original manufacturer of the first high double rotary A4 copy production line, CHM Machinery brings 22 years of continuous research and development to this fully automated equipment. This

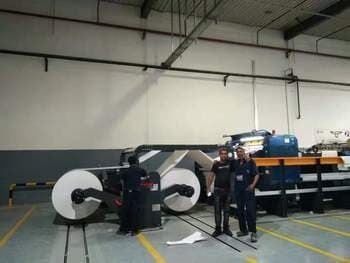

Máquina para cortar hojas de papel de carrete a carrete
CHM High Speed Precision Paper Sheeter 1400-1900mm 300m/min Product Specifications Cutting Way Top blade rotary, bottom blade fixed Reference weight of cutting paper 60-550GSM Cutting accuracy ±0.5mm Max cutting speed 300sheets/min Max.cutting meter speed 300m/min Cutting length range 450-1650mm Max scroll diameter 1800mm Stacking height Of paperboard 1500mm(59") Product Description Ac servo-driven system for exceptional speed, precision, and efficiency. The single rotary
CHM1400- 1900mm Ac Serie de papel de rodillo a la máquina de hoja
Ac Series High Speed Precision Paper Sheeter Machine CHM-1400/1700/1900mm CHM-1400/1700/1900 are defined in accordance with the width of the reel base paper. High precision single rotary sheet cutter paper machine 1 , Servo drive: the speed is 300m/min 2 , Double frequency conversion drive: speed 450m/min, energy saving about 7KW 3 , Double roller (high precision double spiral transverse sheet machine) : paper cutting gram weight: 200-1000, speed: 300m/min Product Specificati
Máquina de hoja de papel de la serie AC CHM1400- 1900mm
Ac Series High Speed Precision Paper Sheeter Machine CHM-1400/1700/1900mm Product Specifications Cutting Way Top blade rotary, bottom blade fixed Reference weight of cutting paper 60-550GSM Cutting accuracy ±0.5mm Max cutting speed 300sheets/min Max.cutting meter speed 300m/min Cutting length range 450-1650mm Max scroll diameter 1800mm Stacking height Of paperboard 1500mm(59") Product Overview The CHM Series High Speed Precision Paper Sheeter features a servo-driven cutting
Cortadora de papel de alta velocidad tipo L para 8 - 12 rollos, corte de hojas de papel
L-Type Up And Low Paper Roll To Sheet Mahinery Paper Sheeter Machines This machine cutting thin paper of 30 grams, it is also common to cut 8-12 rolls at the same time. The speed cut be 100 cutting/min.Thin paper sheeter is not easy for many sheeter machines, CHM Machinery has been committed to making sheeter machines, so thick and thin paper can be easily controlled. The single rotary sheeter machine with "fixed bottom knife and rotating upper knife" is also called single
Maquinaria CHM Máquina de papel de alta velocidad 27kW Máquina de papel de papel 300m/min
Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging Product Overview CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling 60-500 GSM paper, it's ideal for printing, packaging, and paper suppliers. The modular design allows for multiple roll processing simultaneously. CHM
Cortes de alta velocidad de Paper Sheeter 300/Min Chm Machine 60GSM - 500GSM
CHM Roll To Sheet Cutting Machine High Speed 240/Min Cut 300g White Cardboard Paper AC Servo drive high precision single rotary sheet cutter paper machine. The strength of this machine is in thin paper. We can increase the number of Unwind Stand to adapt to the sheeter of more kinds of paper. For example, 70 grams of double-sided paper, 4 or even 6 rolls are sheeter at the same time, which is very easy. The paper market 95% paper can be cut using this device, with high speed
